Attach and Detach Pin-On Bucket (If Equipped)

1.


   W20683-UN-17FEB10

   Prevent possible injury. Keep hands clear of all moving parts. Use a tapered pin or drift to help align holes.

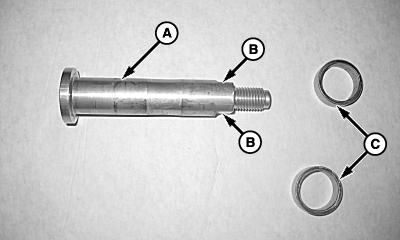

   W20855-UN-04MAY10

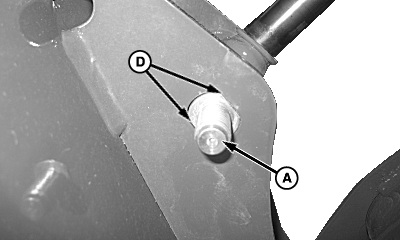

   W20856-UN-06OCT10

   A - Bucket Pin

   B - Flat Side

   C - Spacer (top pin only, 2 on each pin)

   D - Inner Bucket Hole

   Bucket pins (A) have two flat sides (B) that must align with the inner bucket hole (D). Spacers (C) install on each side of the upper cylinder rods.

---




2.

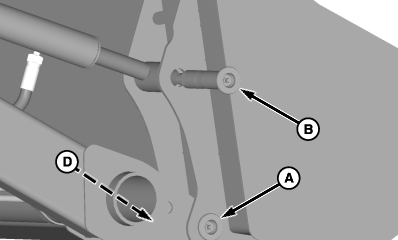

   W20788B-UN-05MAY10

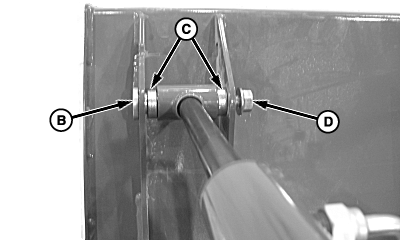

   W20857-UN-05MAY10


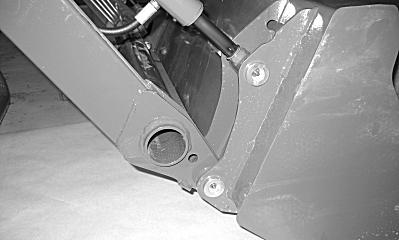

   W20858-UN-04MAY10

   A - Lower Bucket Pin

   B - Upper Bucket Pin

   C - Spacer (2 each, top pin only)

   D - Flange Nut

   Position the tractor so the loader boom aligns with the lower pin holes. Engage the park brake and place the transmission in PARK. Shut off engine and remove ignition key.

---




3. Install the lower bucket pin (A) and flange nut (D).

4. Start the engine. To align the cylinder rod with the upper hole, use loader controls.

5. Shut off the engine.

6. Install the upper pin (B) with spacers (C) on each side of the cylinder rod. Tighten hardware to specification.

   Flange Nut	Torque	150 N·m (110 lb·ft)

7. Start the engine and verify operation of the bucket functions.

8. Detach the bucket in reverse order.
