Detach and Attach Quik-Change Attachments

1.

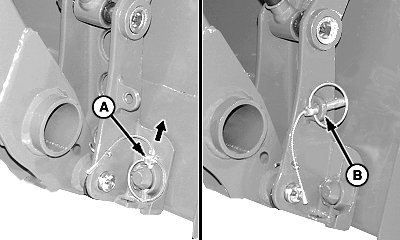

   W21481-UN-04APR11

   A - Quick-Lock Pin

   B - Storage Position

   The procedure is the same for all attachments. Bucket attachment shown.

   Start the engine.

---




2. Release the park brake and place the transmission in NEUTRAL.

3. Roll back the bucket slightly and raise the boom approximately 460 mm (18 in) above the ground.

4. Engage the park brake and place the transmission in PARK. Shut off engine and remove ignition key.

5. Remove the quick-lock pin (A) from each side of the bucket.

6. Store quick-lock pins in the storage position (B).

7.

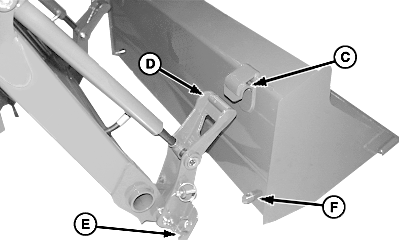

   W27350-UN-21MAR16

   C - Hook

   D - Holder

   E - Holder Strap

   F - Bucket Pin

   Start the engine.

---




8. Extend bucket cylinders until the bucket pin (F) releases from the holder strap (E) on each side of the bucket.

9. Lower the boom, place the transmission in REVERSE and move away from the bucket. Holder (D) releases from the hook (C) on each side of the bucket.

10. Set the park brake or place the transmission in PARK. Shut off engine and remove ignition key.

11. Attach in reverse order.
