Service Loader and/or Tractor Safely (Loader Attached)

Normally, the engine compartment and the front of the tractor can be accessed with the bucket flat on the ground. However, due to tractor size and tire variations, it can be necessary to service the tractor or loader with the loader elevated.

Depending on the loader and attachment configuration, do one of the following:

• If servicing the tractor or loader requires the loader to be elevated, perform the following:

  1.


     W00278-UN-04DEC91


     W27353-UN-21MAR16

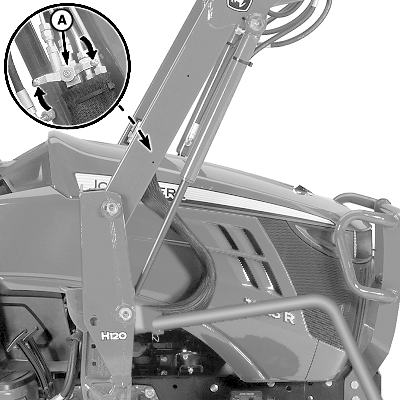

     A - Handle, Shutoff Valve

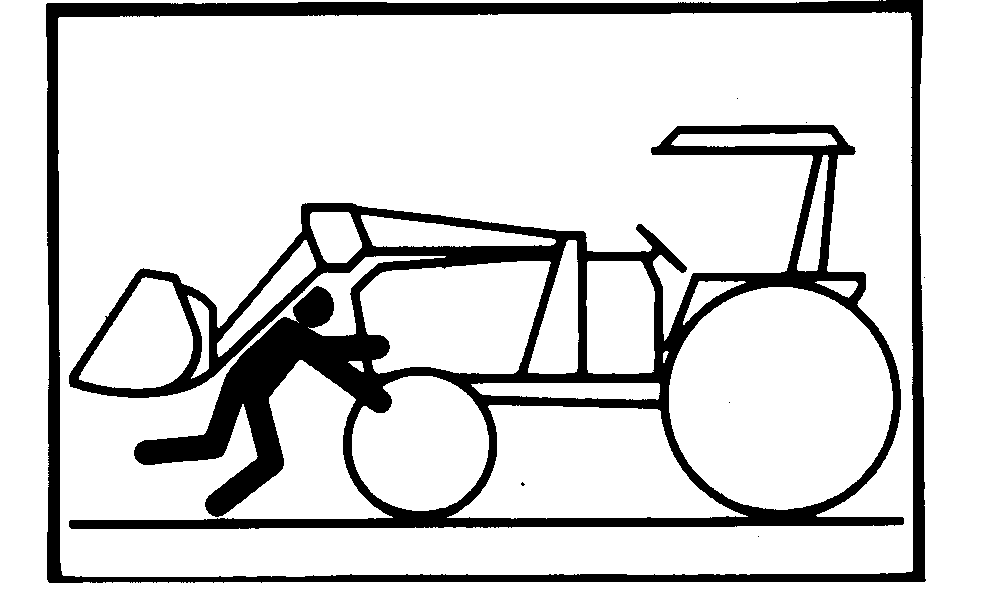

     Prevent possible injury from an accidental lowering of the loader. DO NOT perform service around the front of the tractor with the loader elevated unless the shutoff valve is closed, locking the loader into an elevated position. DO NOT use the shutoff valve alone to lock the loader in an elevated position for servicing the tractor. Support the loader with floor stands or lifting straps/chains connected to an overhead hoist.
     Shutoff valve is on the inside right-hand side boom.
     Raise the loader to the desired height and support the elevated loader with floor stands or lifting straps/chains connected to an overhead hoist.
  2. Place the transmission in PARK.
  3. Shut off engine and remove ignition key.
  4. Turn the shutoff valve handle (A) clockwise to lock the loader in an elevated position.
• If the loader is not required to be elevated for servicing the tractor or loader, perform the following:

  1.


     W23292-UN-14NOV12

     Prevent possible injury from an accidental lowering of the loader. DO NOT perform service around the front of the tractor unless the loader is safely secured.
     Place the transmission in PARK.

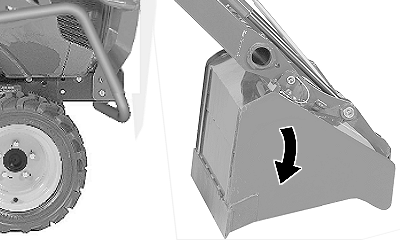

  2. Roll the bucket forward until the front edge is facing the ground.
  3. Lower the boom to the ground and shut off the engine.
  4. Relieve the hydraulic pressure. See the tractor Operator’s Manual for more information.
