Adjust Bucket Level Indicator

1.
   W27355-UN-21MAR16


   W21493-UN-24FEB11

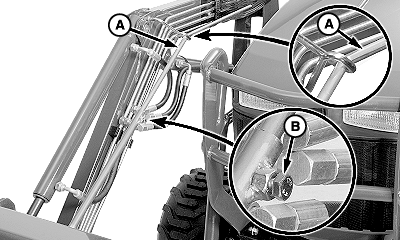

   A - Rod

   B - Cap Screw

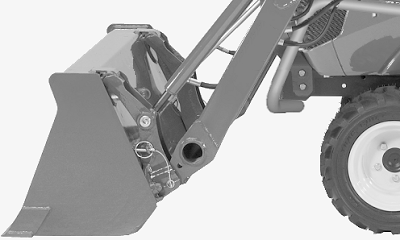

   Position bucket or attachment level on ground.

---




2. Loosen cap screw (B).

3. Adjust rod (A) up or down until bend rests in guide bracket.

4. Tighten cap screw to hold rod securely in place.
