Attach Ballast Box to Tractor with Quick-Hitch

Prevent possible injury from tractor instability. Be sure to attach the ballast box AFTER attaching the loader. Prevent possible injury or machine damage whenever the ballast box is attached. Put the transmission in the PARK position and check the full range of the hitch for interference or binding. DO NOT stand between the tractor and ballast box.

  1. Lower the hitch until quick-hitch hooks are lower than hitch pins.

  2. Back up the tractor to the ballast box.

  3. Check spring-loaded clips on the quick-hitch to be sure that latches are free and working properly.

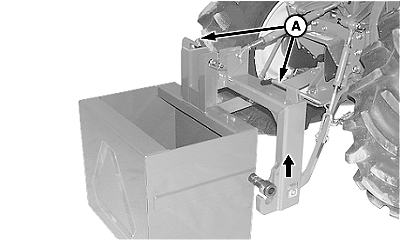

    W07487
    W07487-UN-15JUL05

    A - Latch Control Lever (2 used)

    Make sure that latch control levers (A) are down (as shown).


  4. Raise the hitch engaging hitch pins in quick-hitch hooks. Raise the ballast box and check for interference. Lower the ballast box to the ground and adjust if necessary.
