Add Ballast to 3-Point Hitch
W05950-UN-24MAR03

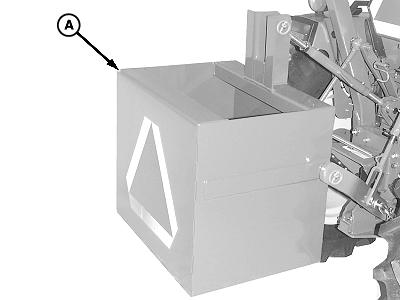

3-Point Hitch with Ballast Box
W05951-UN-24MAR03

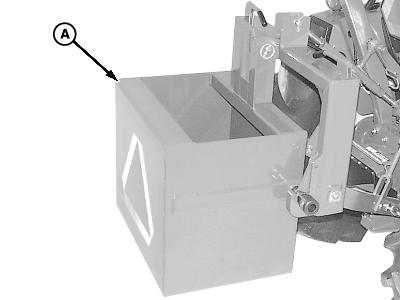

Quick Coupler with Ballast Box
A - Ballast Box
Weight can be added to the ballast box (A) by adding material such as sand or concrete. If more weight is required, tractor Quik-tach weights can be used.A ballast box extension is available to increase the capacity of the ballast box. See a John Deere dealer for more information.
A 3-point hitch mounted implement can be used as ballast, but it must meet the weight requirements of the ballast chart. See a John Deere dealer for more information.
|
CALCULATED BALLAST |
||
|---|---|---|
|
SAND (Dry) |
CONCRETE |
|
|
Ballast Box without Extension |
||
|
Volume: 0.14 cu m (4.94 ft³) (0.18 yd³) |
||
|
Material |
217.5 (480) |
315.5 (695) |
|
Empty Box |
58.5 (129) |
58.5 (129) |
|
Total Weight |
276 (608) |
374 (824) |
|
Ballast Box with Extension |
||
|
Volume: 0.17 cu m (6.00 ft³) (0.23 yd³) |
||
|
Material |
306.5 (676) |
443.5 (977) |
|
Empty Box |
72.5 (160) |
72.5 (160) |
|
Total Weight |
379 (835) |
516 (1137) |
|
OUO6064,00024B2-19-20180828 |
