Loader Controls

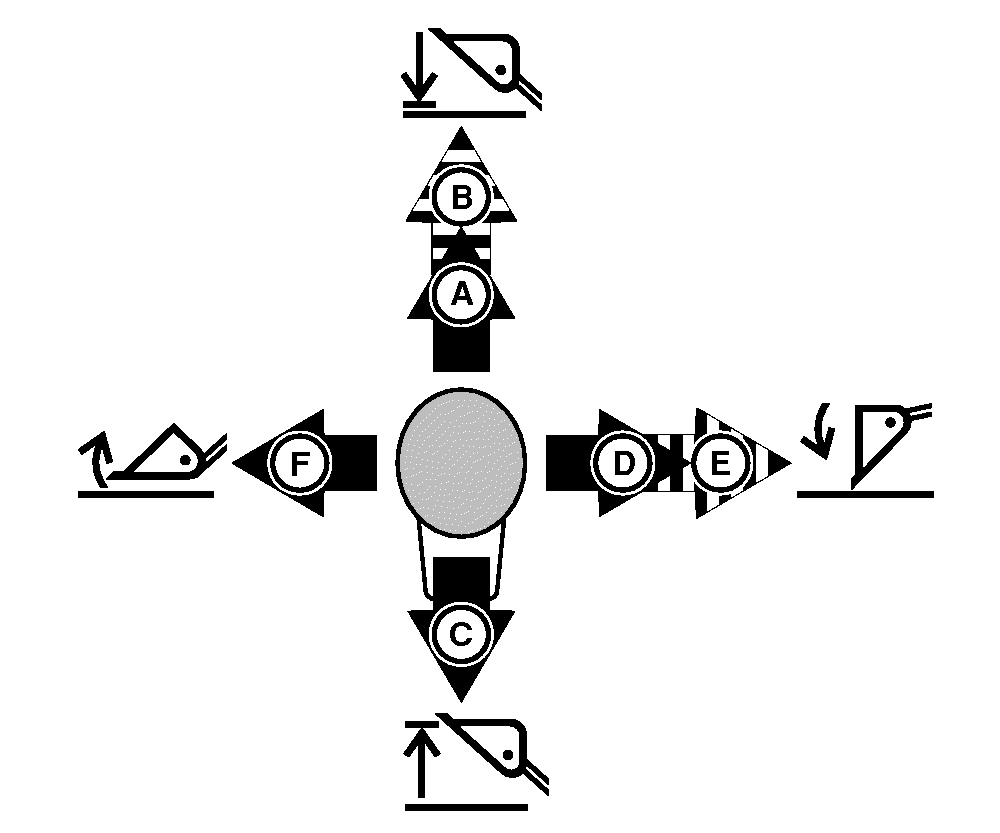

W20684-UN-18MAR10

Lever returns to NEUTRAL by itself from all positions except FLOAT. Pull lever back to release from FLOAT.

Key	Lever Movement	Loader Operation
A	Forward	Boom Lower
B	Locked Forward	Boom Float
C	Back	Boom Raise
D	Right	Bucket or Attachment Dump
E	Far Right	Fast Dump
F	Left	Bucket or Attachment Roll Back

If two loader functions are activated simultaneously and tractor oil flow is limited, the operation that requires the least hydraulic force moves first.
