Rear Tread Settings

W00851-UN-04JUN93

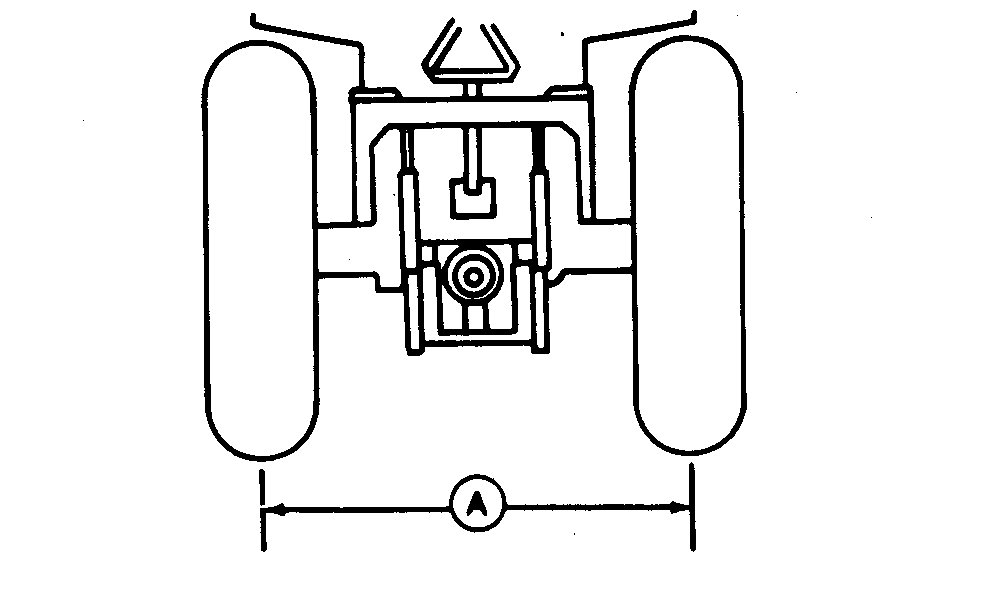

A - Rear Tread Setting Distance, Center-to-Center

CAUTION: To help prevent personal injury or death from rollover, use widest distance from tire center-to-tire center (A) to maximize stability. (See MINIMUM REAR BALLAST REQUIREMENTS AND TIRE RATINGS in this section.)

Minimum tread setting distance, tire center-to-tire center (A), should be 1825 mm (72 in.).

See your tractor Operator’s Manual to make adjustments.
