Operate Bale Grapple

1. CAUTION:


   W24669-UN-23JAN14


   W24670-UN-23JAN14

   To help prevent personal injury or accident caused from a bale falling off the loader, carry the bale low and slightly rolled back. Travel slowly over rough ground.

   NOTE: Refer to Safety section for additional information on proper operation of bale grapple.

   Approach bale with grapple open, bucket level and close to the ground.

---

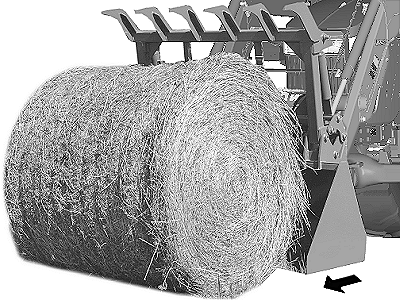

2. Slide front edge of bucket under bale until bale is against grapple frame.

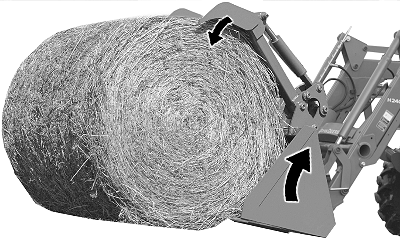

3. Close grapple, raise and roll back bale just high enough to provide ground clearance for transport.
