Access Front of Tractor (Rigid Hood Guards)

CAUTION:

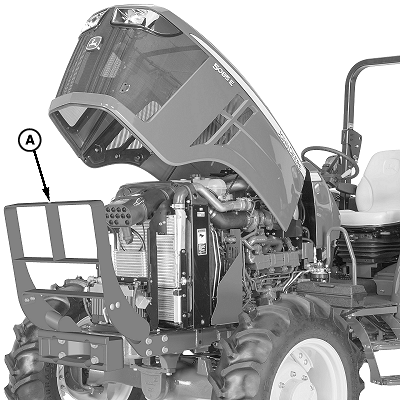

W24293
W24293-UN-23SEP13

A - Hood Guard

If unable to access front of tractor with loader attached, either remove loader or raise loader. If loader is raised for access, lock loader into position using shut off valve and support loader using floor stands or lifting straps or chains connected to an overhead hoist. (Refer to SERVICE LOADER AND TRACTOR SAFELY [LOADER ATTACHED] at the beginning of this section.)

Hood guard (A) does not fold down. Hood can be raised with hood guard in place.

OUO6064,0000C19-19-20130923
