Attach Bucket or Attachment—520M Loaders


Global Carrier

  1. CAUTION: Prevent bodily injury, DO NOT allow bystanders near the loader while attaching the bucket or attachment. Allow only the tractor operator to attach the bucket or attachment.

    NOTE: Procedure is the same for all attachments. Bucket attachment shown.

    Clean debris off the latching mechanism, carrier, and attaching points.

  2. Extend bucket cylinders to position the carrier forward.

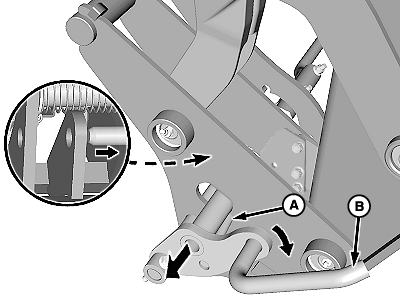

  3. W24109
    W24109-UN-28AUG13

    Latch Handle

    A - Pin

    B - Handle

    Shut off engine and remove ignition key.


  4. Pull latch handle (B) outward and clockwise until pin (A) rests against the carrier frame and is locked in UNLATCHED position.

  5. W24110
    W24110-UN-09AUG13

    Full Extension

    A - Arms

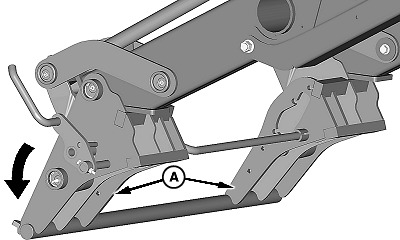

    Extend bucket cylinders to position the carrier arms (A) downward.


  6. W24156
    W24156-UN-13AUG13

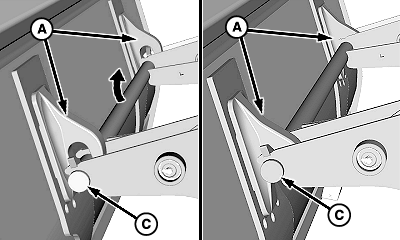

    W24157
    W24157-UN-13AUG13

    A - Arm

    B - Hooks

    C - Bar

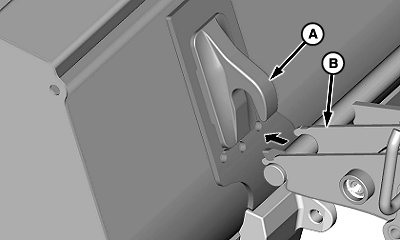

    Drive forward and center carrier arms (A) under hooks (B) on the bucket.


  7. Extend lift cylinders until bar (C) engages the hooks on both sides of the bucket.

  8. W24158
    W24158-UN-28AUG13

    A - Pin (1 each side)

    B - Bracket, Attachment (1 each side)

    C - Rod

    D - Tab

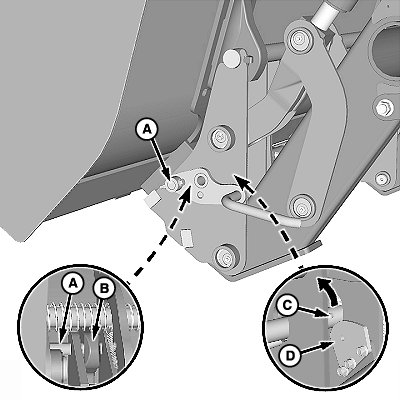

    Retract bucket cylinders. Rod (C) contacts tab (D) and release the latching mechanism, allowing pins (A) to slide into brackets (B) on the bucket.

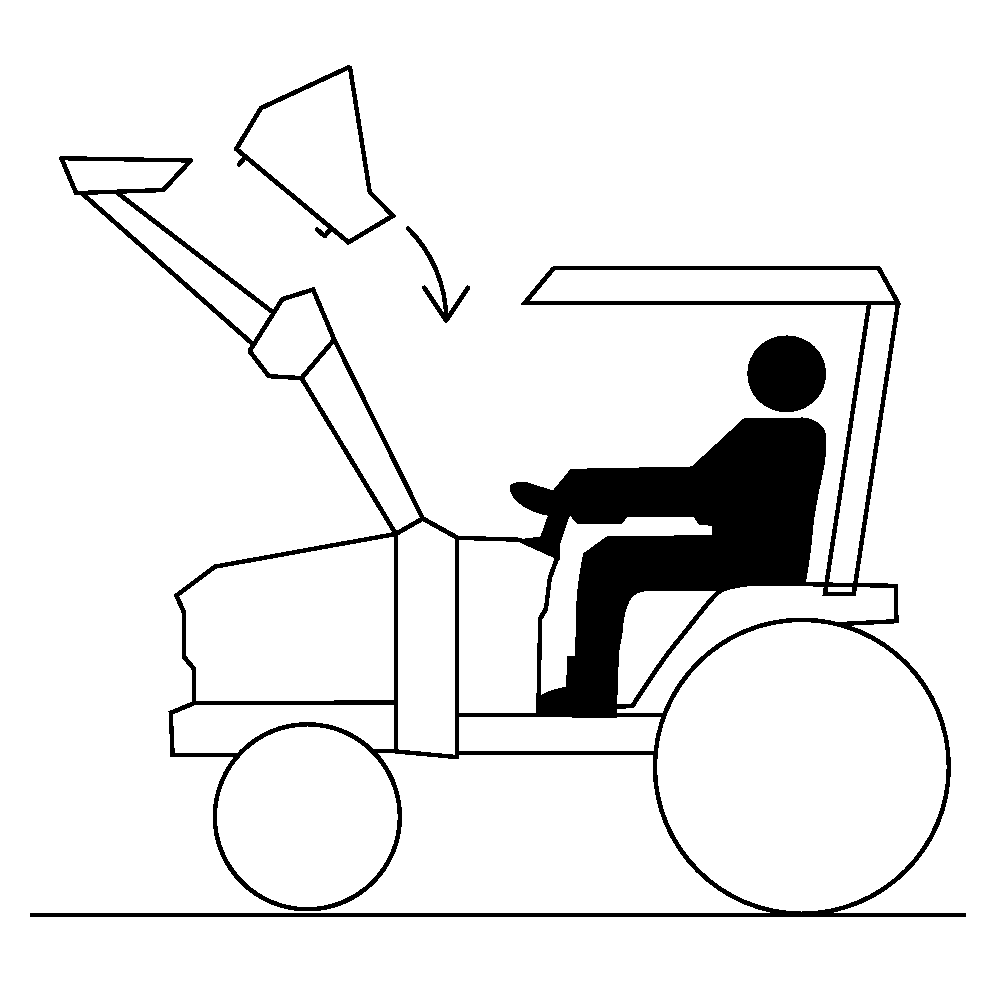

  9. CAUTION:

    W08424
    W08424-UN-14DEC06

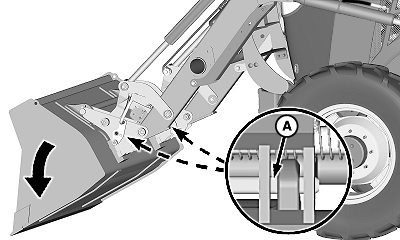

    W27985
    W27985-UN-30MAY17

    A - Latch Pin (1 each side)

    Prevent bodily injury or death from a falling bucket or attachment. DO NOT operate the loader without making sure that latch pins (A) are engaged with the bucket or attachment. Failure to engage pins could cause bucket or attachment to detach from loader.

    Check pin engagement with bucket:

    1. Position loader approximately 300 mm (12 in) from the ground and extend the bucket cylinders until the front edge of the bucket contacts the ground.

    2. Continue to apply pressure against the ground verifying pins (A) are engaged with the bucket.


  10. CAUTION:

    X9811
    X9811-UN-23AUG88

    Escaping fluid under pressure can penetrate the skin causing serious injury. Avoid the hazard by relieving pressure before connecting hydraulic or other lines. Protect hands and body from high-pressure fluids. See additional information, Avoid High-Pressure Fluids in Safety section.

    Level bucket and lower flat on the ground.


  11. Relieve hydraulic pressure. (See Relieve Hydraulic Pressure in Controls section.)

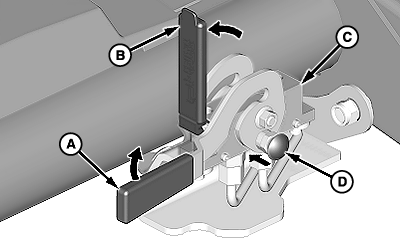

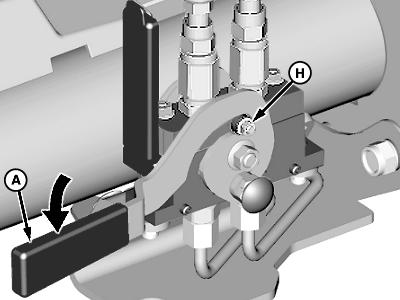

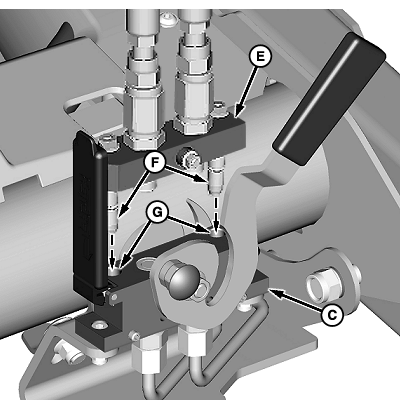

  12. W24160
    W24160-UN-13AUG13

    W24161
    W24161-UN-14AUG13

    W24162
    W24162-UN-14AUG13

    A - Lever

    B - Cover

    C - Coupler, Loader

    D - Red Knob

    E - Coupler, Attachment

    F - Pins

    G - Holes

    H - Pin (1 each side)

    If equipped with a hydraulic-operated attachment, such as a grapple, connect the hydraulics as follows:

    Multicoupler configuration:

    1. Raise multicoupler cover (B).

    2. Push in red knob (D) and rotate lever (A) upward, as shown.

    3. IMPORTANT: Prevent possible coupler damage, multicoupler halves must be aligned properly.

      Insert attachment coupler half (E) into loader coupler (C). Make sure that locating pins (F) on the attachment coupler fit into corresponding holes (G) in the loader coupler.

    4. Rotate lever (A) downward to engage pins (H) and lock the coupler halves together.


  13. NOTE: Hose connections are identified by matching the color-coded cap on the hose end with the same color-coded plug on the hydraulic lines:

    • (A) Attachment Cylinder—Rod End (Green)
    • (B) Attachment Cylinder—Head End (Orange)

    W24163
    W24163-UN-14AUG13

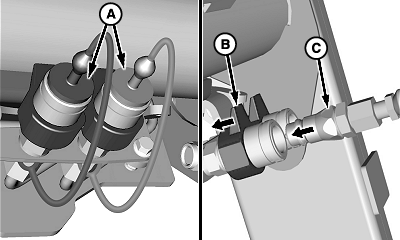

    A - Plugs

    B - Coupler, Female

    C - Coupler, Male

    Quick coupler configuration:

    1. Remove plugs (A) from the female couplers.

    2. Push and hold the collar on coupler (B).

    3. Insert hydraulic hose connector (C) into the coupler.

    4. Release collar on the coupler.

    5. Repeat steps for remaining couplers (B) and hose connectors (C).

    6. Connect color-coded caps and plugs together.



500-Style Carrier

  1. CAUTION: Prevent bodily injury. DO NOT allow bystanders near the loader while attaching the bucket or attachment. Allow only the tractor operator to attach the bucket or attachment.

    NOTE: Procedure is the same for all attachments. Bucket attachment shown.

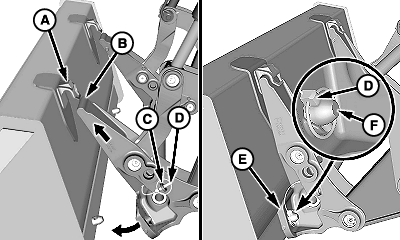

    W24175
    W24175-UN-28AUG13

    A - Hook (1 each side)

    B - Carrier

    C - Storage Position

    D - Quick Lock Pin (1 each side)

    E - Carrier Strap (1 each side)

    F - Bucket Pin (1 each side)

    Extend bucket cylinders to position carrier (B) forward.


  2. Align tops of the carrier with hooks (A).

  3. Raise loader until the carrier engages hooks, then retract the bucket cylinders until the bucket rests against the carrier.

  4. CAUTION: Prevent bodily injury. Make sure that the bucket or attachment is properly secured to the carrier.

    Raise loader and check that carrier straps (E) engage bucket pins (F) on both sides.

  5. Place transmission in PARK and shut off engine.

  6. Remove quick lock pins (D) from storage position (C).

  7. Install quick lock pins (D) through bucket pins (F).


Skid-Steer Carrier

  1. CAUTION:

    W08389
    W08389-UN-29NOV06

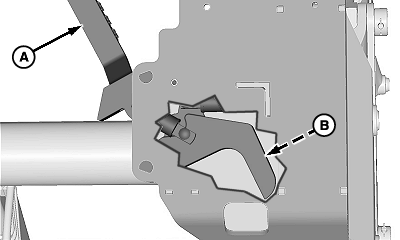

    Left-Hand Lock Pin

    W08390
    W08390-UN-28NOV06

    W24172
    W24172-UN-28AUG13

    Tilt Bucket or Attachment Forward

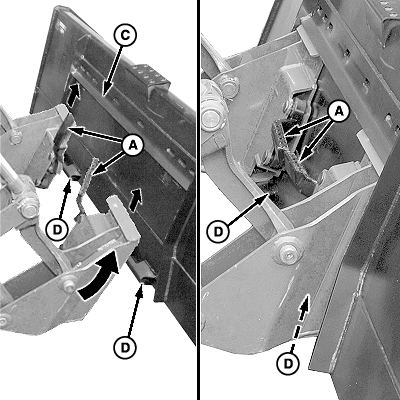

    A - Latch Handles

    B - Lock Pin (1 each side)

    C - Lip

    D - Latches

    Prevent bodily injury. DO NOT allow bystanders near the loader while attaching the bucket or attachment. Allow only the tractor operator to attach the bucket or attachment.

    IMPORTANT: Prevent possible machine damage. Make sure that both latch handles (A) are up and lock pins (B) are retracted.

    NOTE: Procedure is the same for all attachments. Bucket attachment shown.

    Raise both latch handles (A) into the UP (unlatched) position.


  2. Raise loader off the ground.

  3. Extend bucket cylinders to position the carrier forward.

  4. Drive forward and raise the loader until the carrier plates are positioned under lip (C) on the bucket. Retract bucket cylinders until the bucket rests against the carrier.

    NOTE: Bucket must rest against the carrier plates.

  5. Lower loader to the ground and shut off engine.

  6. Lower latch handles (A) to engage pins (B) with latches (D) on the bucket.

  7. CAUTION: Prevent bodily injury. Make sure that the bucket or attachment is properly secured to the carrier.

    Extent bucket cylinders to apply pressure against the ground to verify that pins (B) are engaged in latches (D) of the bucket.

    NOTE: If the bucket or attachment is not securely attached to the skid steer carrier, repeat the attaching steps.
