Every 10 Hours—520M Loaders

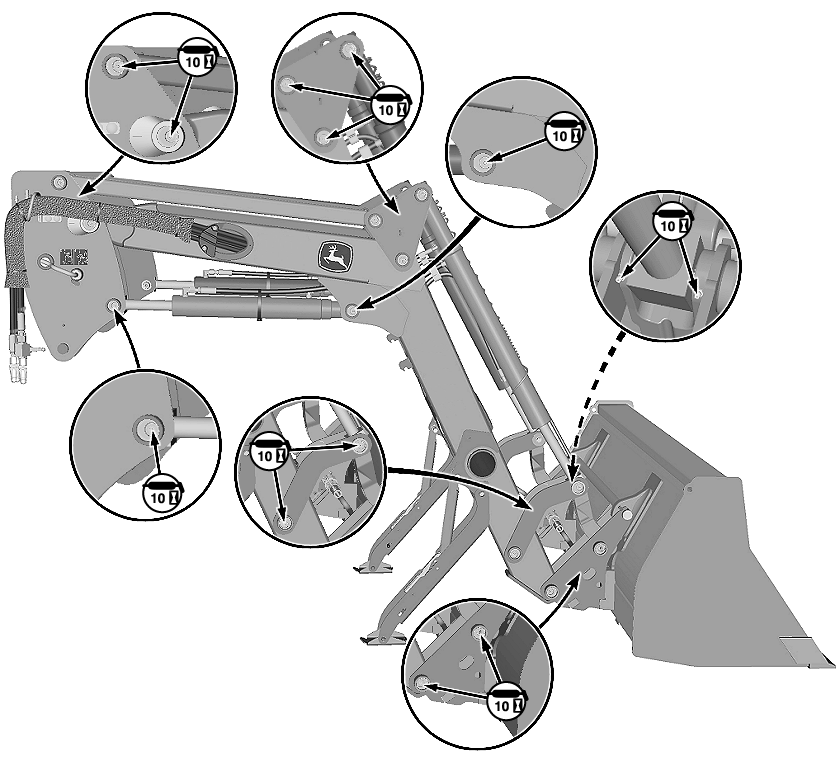

Mechanical Self-Leveling Loaders

NOTE:

W27986
W27986-UN-30MAY17

Lubrication Points

To access all the lubrication points, roll back the bucket or attachment and lower the loader to the ground.

Lubricate 26 fittings, 13 on each side of the loader.

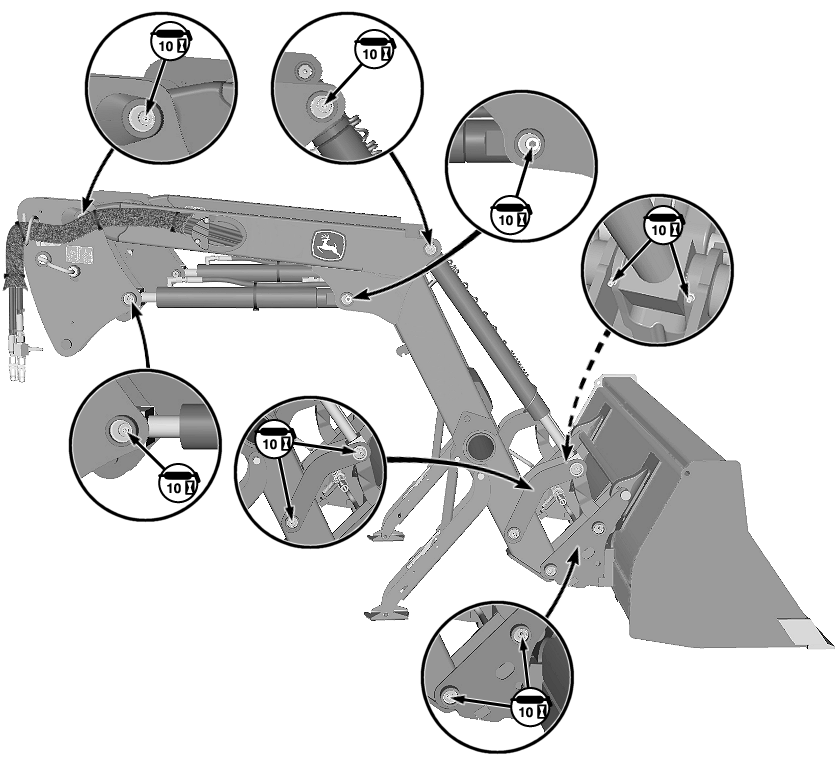

Non Self-Leveling Loaders

NOTE:

W27987
W27987-UN-30MAY17

Lubrication Points

To access all the lubrication points, roll back the bucket or attachment and lower the loader to the ground.

Lubricate 20 fittings, 10 on each side of the loader.

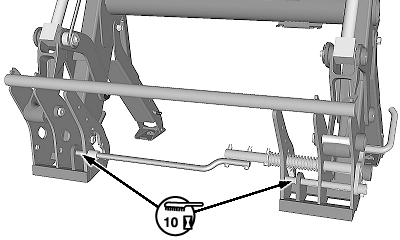

Latch Pins

W24288
W24288-UN-30AUG13

Clean and lubricate latch pins on both sides of the carrier. Make sure that the pins engage freely.

OUO6064,0001CF1-19-20170808
