Every 50 Hours—520M Loaders

Tighten Mounting Frame Cap Screws

1. IMPORTANT:

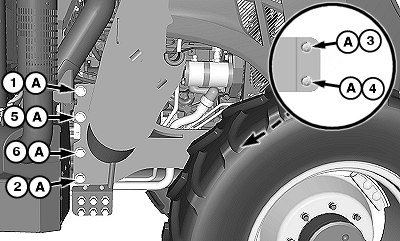

   W26446-UN-13NOV14

   Torque Sequence (right-hand side shown)

   A - Cap Screws, M20

   Prevent possible damage to the tractor or loader caused by operating with loose mounting frames. Tighten loader mounting frame cap screws (A) after the first 10 hours of operation and again after every 50 hours.

   5085E and 5100E Tractors: Tighten cap screws to specifications in the torque sequence shown.

   Item	Measurement	Specification
   Cap Screw (A)	Torque	530 N·m (400 lb·ft)

---




2. IMPORTANT:

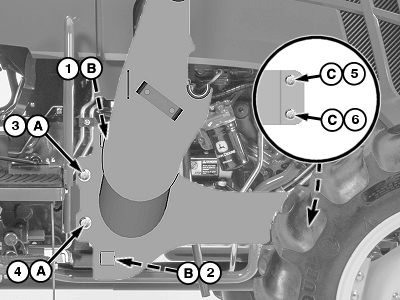

   W24498-UN-12SEP14

   Torque Sequence (right-hand side shown)

   A - Cap Screws, M20

   B - Cap Screws, M20

   C - Cap Screws, M20

   Prevent possible damage to the tractor or loader caused by operating with loose mounting frames. Tighten loader mounting frame cap screws (A—C) after the first 10 hours of operation and again after every 50 hours.

   5083E, 5093E, 5101E, 5603, 5425, 5525, and 5625 Tractors: Tighten cap screws to specifications in the torque sequence shown.

   Item	Measurement	Specification
   Cap Screw (A)	Torque	530 N·m (400 lb·ft)
   Cap Screws (B and C)	Torque	610 N·m (450 lb·ft)

---




3. IMPORTANT:

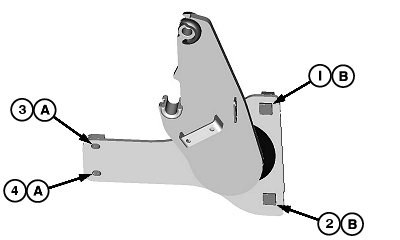

   W26259-UN-31JUL14

   Torque Sequence (left-hand side shown)

   A - Cap Screws, M20

   B - Cap Screws, M20

   Prevent possible damage to the tractor or loader caused by operating with loose mounting frames. Tighten loader mounting frame cap screws (A and B) after the first 10 hours of operation and again after every 50 hours.

   5083EN, 5093EN, and 5101EN Tractors: Tighten cap screws to specifications in the torque sequence shown.

   Item	Measurement	Specification
   Cap Screw (A)	Torque	530 N·m (400 lb·ft)
   Cap Screws (B)	Torque	610 N·m (450 lb·ft)

---




4. IMPORTANT:

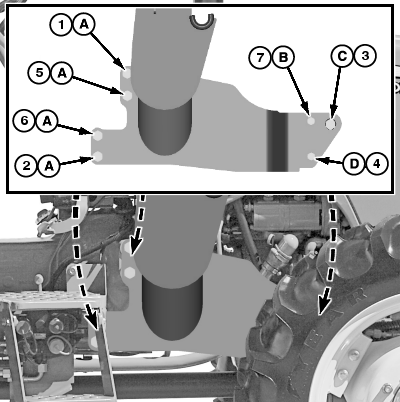

   W24305-UN-04NOV13

   Torque Sequence (right-hand side shown)

   A - Cap Screws, M20

   B - Cap Screw, M16

   C - Cap Screw, M16

   D - Cap Screw, M16

   Prevent possible damage to the tractor or loader caused by operating with loose mounting frames. Tighten loader mounting frame cap screws (A—D) after the first 10 hours of operation and again after every 50 hours.

   5045E, 5055E, 5065E, 5075E (Non-FT4 Models; MY13 and earlier), 5103, 5203, 5303, 5403, 5210, 5220, 5310, and 5320 Tractors: Tighten cap screws to specifications in the torque sequence shown.

   Item	Measurement	Specification
   Cap Screw (A)	Torque	530 N·m (400 lb·ft)
   Cap Screws (B, C, and D)	Torque	275 N·m (200 lb·ft)

---

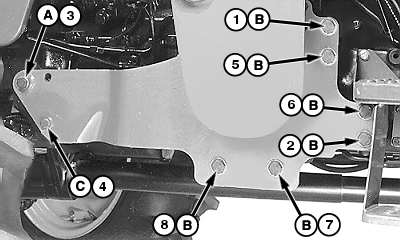

5. IMPORTANT:


   W24497-UN-05NOV13

   Torque Sequence (left-hand side shown)

   A - Cap Screw, M16

   B - Cap Screws, M20

   C - Cap Screw, M16

   Prevent possible damage to the tractor or loader caused by operating with loose mounting frames. Tighten loader mounting frame cap screws (A—C) after the first 10 hours of operation and again after every 50 hours.

   NOTE: Two bottom cap screws (B) are not used on narrow “N” tractors.

   5410, 5410N, 5420, 5510, 5510N, 5520, and 5520N Tractors: Tighten cap screws to specifications in the torque sequence shown.

   Item	Measurement	Specification
   Cap Screws (A and C)	Torque	275 N·m (200 lb·ft)
   Cap Screws (B)	Torque	530 N·m (390 lb·ft)

---




6. IMPORTANT:

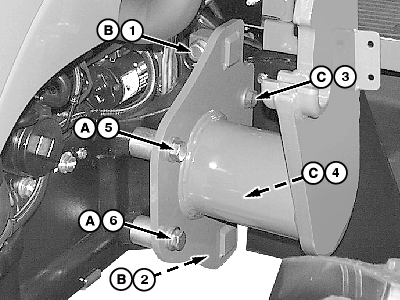

   W21984-UN-10NOV11

   Torque Sequence (left-hand side shown)

   A - Cap Screws, M20

   B - Cap Screws, M20

   C - Cap Screws, M20

   Prevent possible damage to the tractor or loader caused by operating with loose mounting frames. Tightening loader mounting frame cap screws (A—C) after the first 3 hours of loader operation is critical. Tighten again after 10 hours and again after every 50 hours.

   5225, 5325, and 5325N Five-Cylinder Tractors: Tighten cap screws to specifications in the torque sequence shown.

   Item	Measurement	Specification
   Cap Screws (A and B)	Torque	610 N·m (450 lb·ft)
   Cap Screws (C)	Torque	530 N·m (390 lb·ft)

---




7. IMPORTANT:

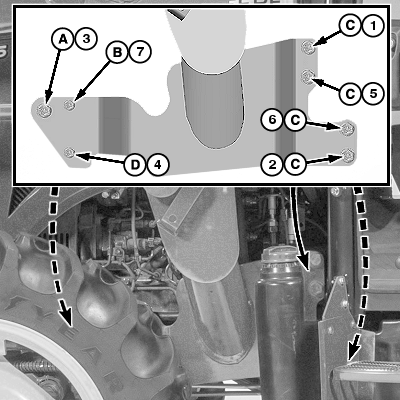

   W24499-UN-05NOV13

   Torque Sequence (left-hand side shown)

   A - Cap Screw, M16

   B - Cap Screw, M16

   C - Cap Screws, M20

   D - Cap Screw, M16

   Prevent possible damage to the tractor or loader caused by operating with loose mounting frames. Tighten loader mounting frame cap screws (A—D) after the first 10 hours of operation and again after every 50 hours.

   5045E, 5055E, 5065E, and 5075E (FT4 MY16 and Earlier Three-Cylinder) Tractors: Tighten cap screws to specifications in the torque sequence shown.

   Item	Measurement	Specification
   Cap Screws (A, B, and D)	Torque	275 N·m (200 lb·ft)
   Cap Screw (C)	Torque	530 N·m (390 lb·ft)

---




8. IMPORTANT:

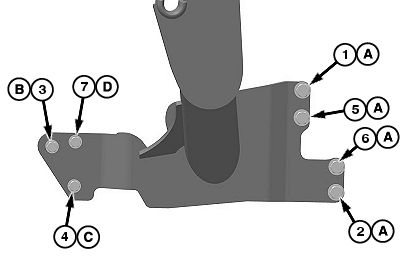

   W27691-UN-23JUN17

   Torque Sequence (left-hand side)

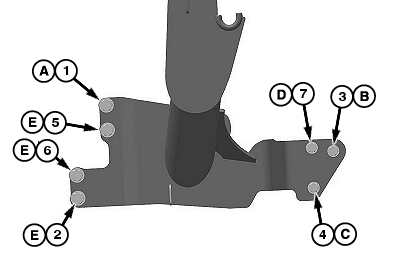

   W28137-UN-06JUL17

   Torque Sequence (right-hand side)

   A - Cap Screw, M20 x 65

   B - Cap Screw, M16 x 70

   C - Cap Screws, M16 x 50

   D - Cap Screw, M16 x 50

   E - Cap Screw, M20 x 70

   Prevent possible damage to the tractor or loader caused by operating with loose mounting frames. Tighten loader mounting frame cap screws (A—E) after the first 10 hours of operation and again after every 50 hours.

   5045E, 5055E, 5065E, and 5075E (FT4 MY17 Three-Cylinder) Tractors: Tighten cap screws to specifications in the torque sequence shown.

   Item	Measurement	Specification
   Cap Screw (A and E)	Torque	530 N·m (390 lb·ft)
   Cap Screws (B, C, and D)	Torque	275 N·m (200 lb·ft)

---

Tighten MFWD Axle Housing and Kingpin Mounting Cap Screw

1.

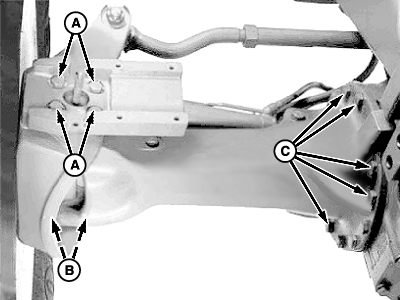

   W07471-UN-07JUL05

   Right-Hand Side Axle Housing (viewed from the front)

   A - Cap Screws (4 each side)

   B - Cap Screws (4 each side)

   C - Cap Screws (13 used)

   Tighten kingpin mounting cap screws (A and B), on both sides, to specification.

   Item	Measurement	Specification
   Kingpin Mounting Cap Screws (A and B)	Torque	620 N·m (457 lb·ft)

---




2. Tighten 13 right-hand side axle housing-to-differential case cap screws (C) to specification.

   Item	Measurement	Specification
   Axle Housing-to-Differential Case Cap Screws (C)	Torque	310 N·m (229 lb·ft)
