Every 10 Hours—540M Loaders


Mechanical Self-Leveling Loaders

NOTE:

W24648
W24648-UN-31JAN14

Lubrication Points

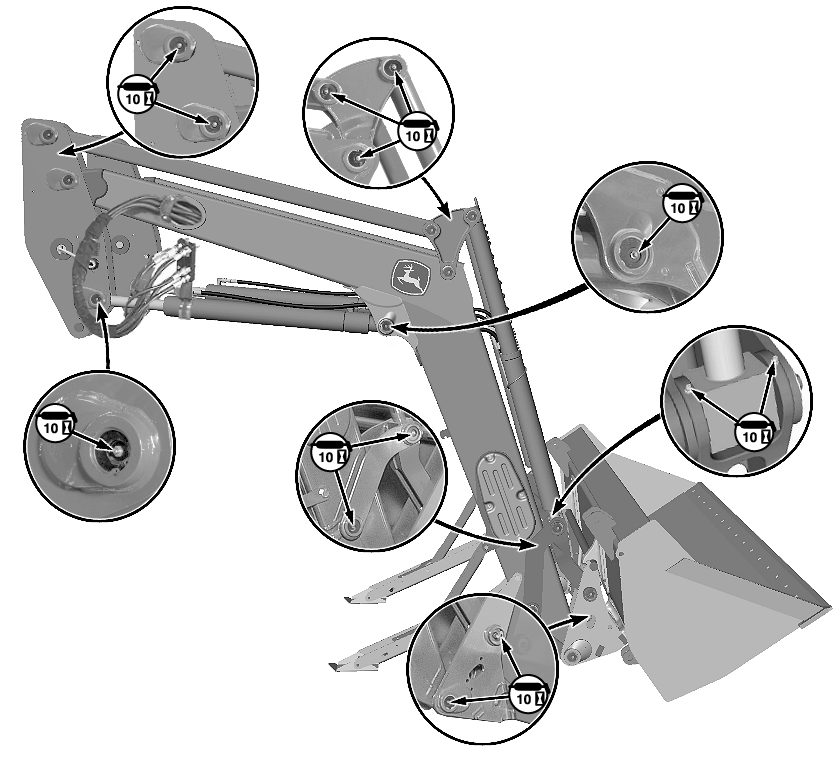

To access all the lubrication points, roll back the bucket or attachment and lower the loader to the ground.

Lubricate 26 fittings, 13 on each side of the loader.


Non Self-Leveling Loaders

NOTE:

W26408
W26408-UN-22OCT14

Lubrication Points

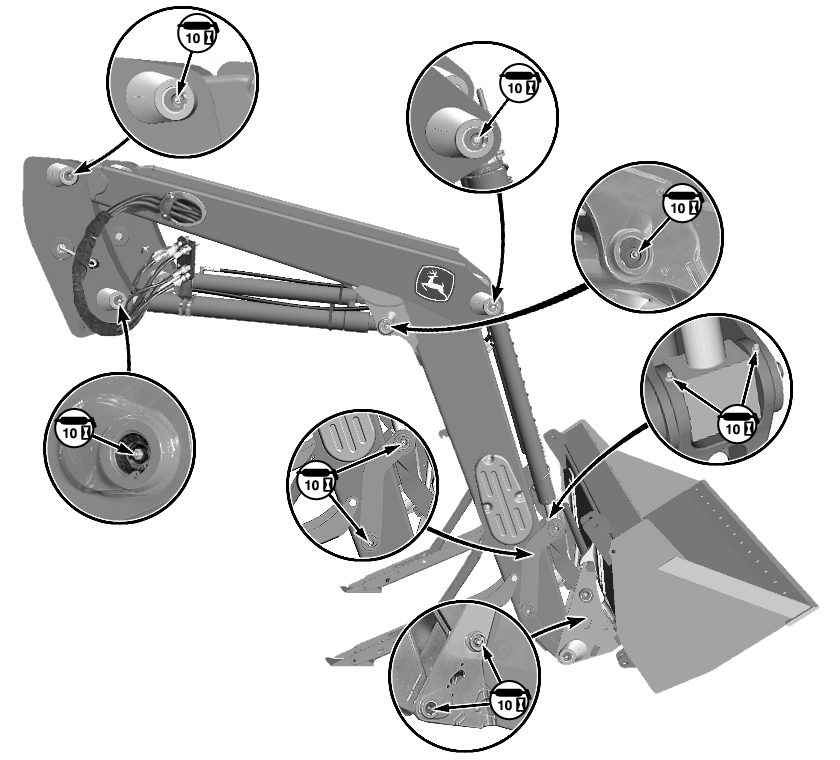

To access all the lubrication points, roll back the bucket or attachment and lower the loader to the ground.

Lubricate 20 fittings, 10 on each side of the loader.


Latch Pins

W20954
W20954-UN-26MAY10

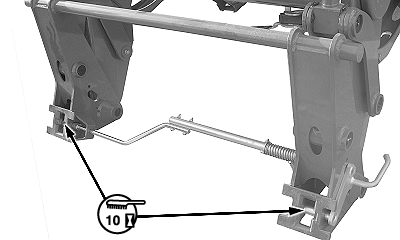

Clean and lubricate latch pins on both sides of the carrier. Make sure that the pins engage freely.


Grapple

W21034
W21034-UN-30SEP10

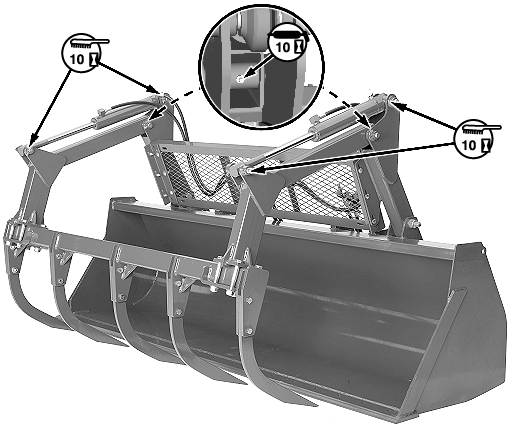

Lubricate fittings on the back of both pivot arms.

Apply grease, oil, or spray lubricant to the cylinder pivots.
