Identify Hose Connections—520M Loaders (Loader-to-Multicoupler)

NOTE:

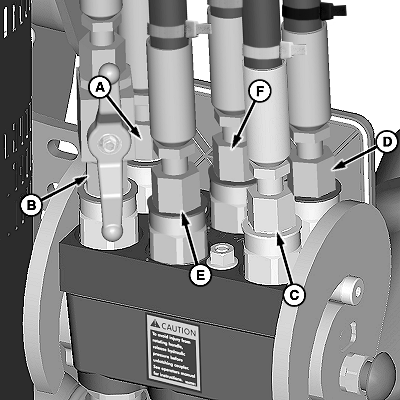

W24294-UN-10FEB14

Multicoupler—Loader Half

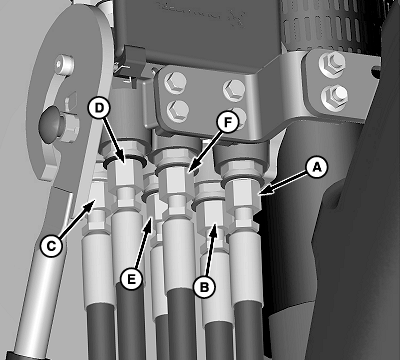

W24295-UN-13FEB14

Multicoupler—Tractor Half

Key	Color	Hydraulic Function
A	Red	Lift Cylinder—Rod End
B	Blue	Lift Cylinder—Head End
C	Yellow	Bucket Cylinder—Head End
D	Black	Bucket Cylinder—Rod End
E	Green	Attachment Cylinder—Rod End
F	Orange	Attachment Cylinder—Head End
