Identify Hose Connections—540M Loaders (Loader-to-Mid-Mount Couplers)

W21737-UN-26AUG11

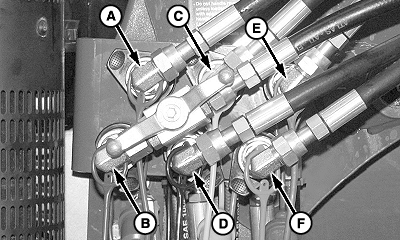

Mid-Mount Couplers

Key	Color	Hydraulic Function
A	Red	Lift Cylinder—Rod End
B	Blue	Lift Cylinder—Head End
C	Yellow	Bucket Cylinder—Head End
D	Black	Bucket Cylinder—Rod End
E	Green	Attachment Cylinder—Rod End
F	Orange	Attachment Cylinder—Head End
