Identify Hose Connections—520M Loaders
NOTE:

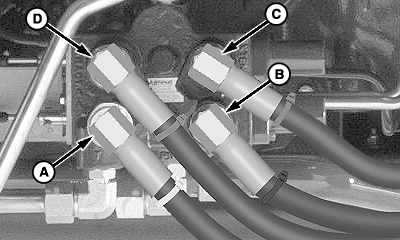

W24301-UN-09OCT13
Two-Function Mid-Mount Valve

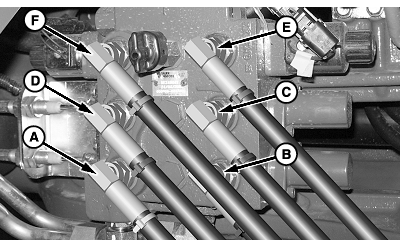

W24302-UN-09OCT13
Third-Function Mid-Mount Valve

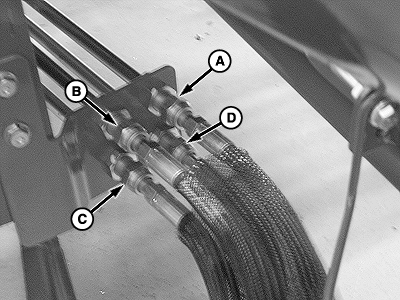

W27690-UN-23JUN17
Two-Function 5E Series (MY18 FT4 three-cylinder) Tractors
Identify hydraulic hoses by the color-coded tie bands near each fitting.
|
Key |
Color |
Hydraulic Function |
|---|---|---|
|
A |
Yellow |
Bucket Cylinder—Head End |
|
B |
Black |
Bucket Cylinder—Rod End |
|
C |
Blue |
Lift Cylinder—Head End |
|
D |
Red |
Lift Cylinder—Rod End |
|
E |
Green |
Attachment Cylinder—Head End |
|
F |
Orange |
Attachment Cylinder—Rod End |
|
OUO6064,0001CFA-19-20170718 |
