Identify Hose Connections—540M Loaders
W26412-UN-22OCT14
Multicoupler—Tractor Half
W21749-UN-30AUG11

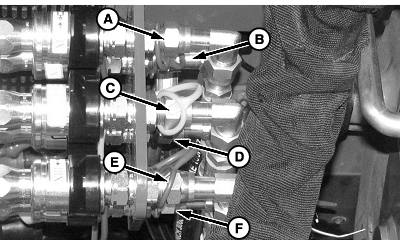

Hoses at Rear of Mid-Mount Couplers
W21746-UN-13SEP11

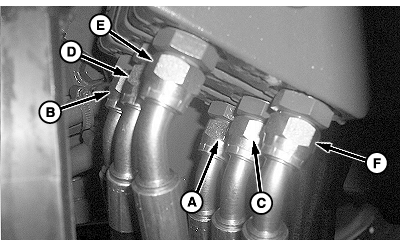

Hoses at Mid-Mount Valve
W27536-UN-07JUL16

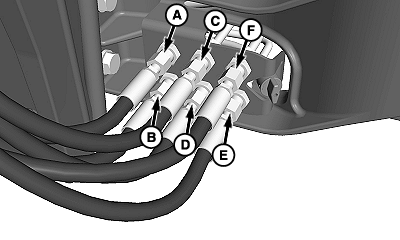

Hoses at Mid-Mount Valve Bracket (5M FT4 series tractors)
W27537-UN-07JUL16

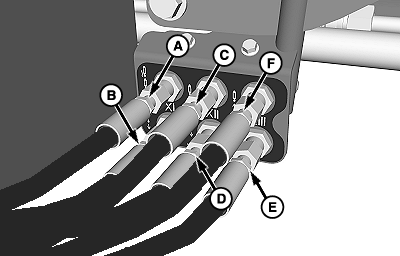

Hoses at Mid-Mount Valve Bracket (5E FT4 series tractors)
|
Key |
Color |
SCV Section |
Hydraulic Function |
|---|---|---|---|
|
A |
Red |
I (Retract) |
Lift Cylinder—Rod End |
|
B |
Blue |
I (Extend) |
Lift Cylinder—Head End |
|
C |
Yellow |
II (Retract) |
Bucket Cylinder—Head End |
|
D |
Black |
II (Extend) |
Bucket Cylinder—Rod End |
|
E |
Green |
III (Extend) |
Attachment Cylinder—Rod End |
|
F |
Orange |
III (Retract) |
Attachment Cylinder—Head End |
|
OUO6064,0001CFB-19-20170718 |
