Identify Loader Oil Line Connections—540M Loaders

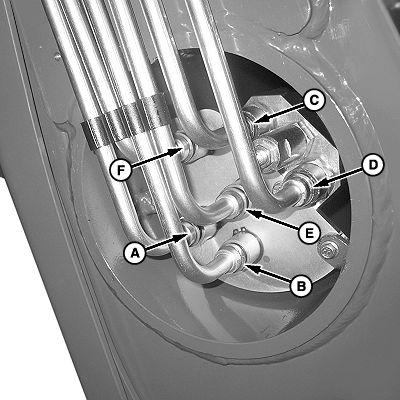

W27538-UN-07JUL16

Right-Hand Side

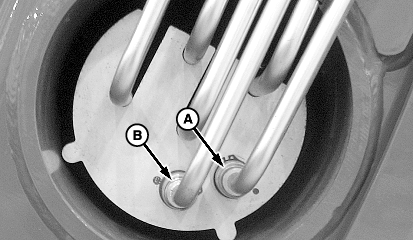

W27539-UN-07JUL16

Left-Hand Side

Key	Color	Hydraulic Function
A	Red	Lift Cylinder—Rod End
B	Blue	Lift Cylinder—Head End
C	Yellow	Bucket Cylinder—Head End
D	Black	Bucket Cylinder—Rod End
E	Green	Attachment Cylinder—Rod End
F	Orange	Attachment Cylinder—Head End
