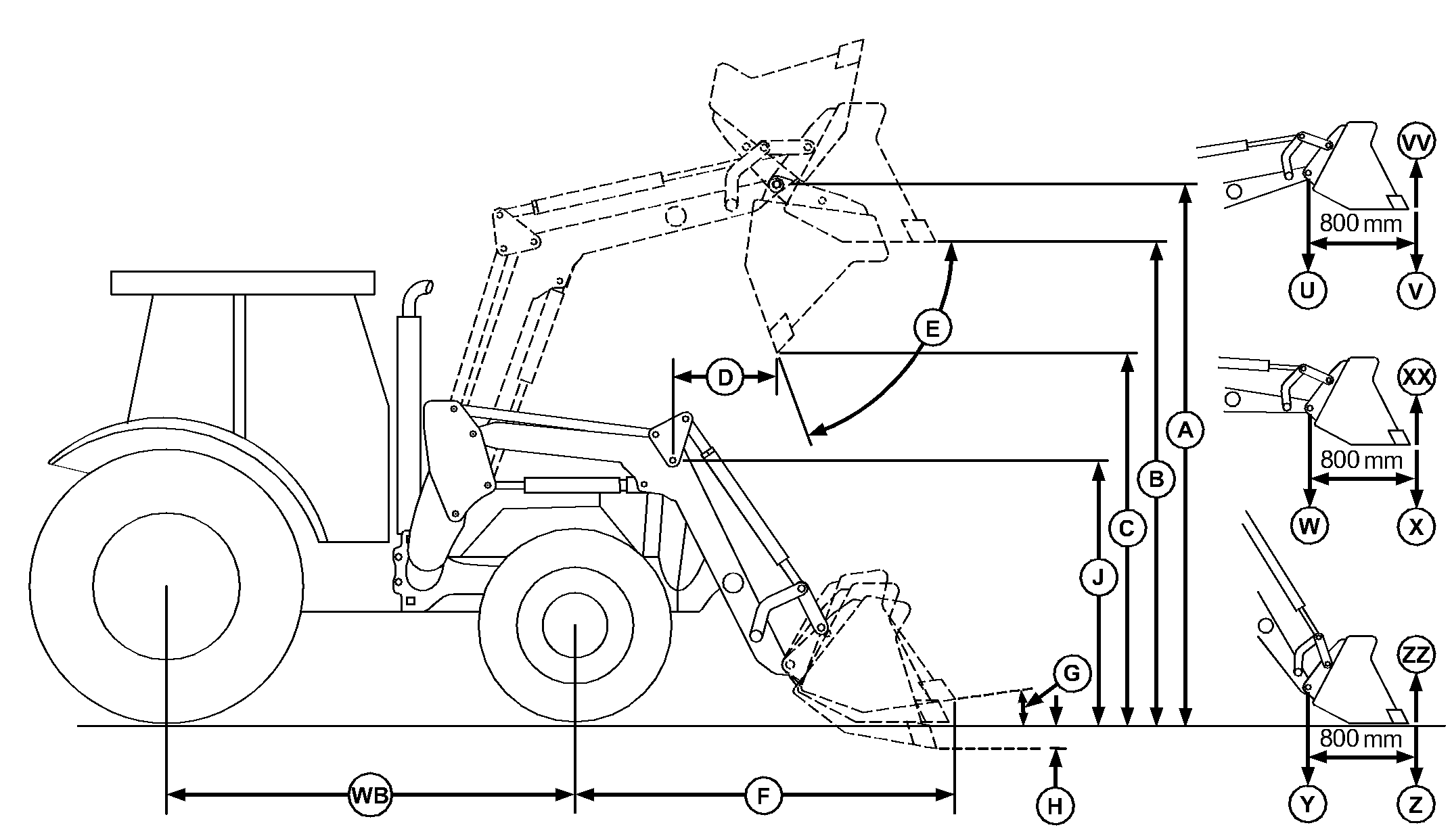

520M Mechanical Self-Leveling Loader Specifications on 5E Series FT4 Three-Cylinder Tractors

W24299-UN-04NOV13

Model 5E Series FT4 Three-Cylinder Tractors1
Minimum Rear Ballast	Option 1	3-Point Hitch 1400 kg (3086 lb)
	Option 2	3-Point Hitch 1300 kg (2866 lb) Plus Rear Axle 200 kg (441 lb)
Front Tires	12.4 R24
Rear Tires	18.4 R30
Materials Bucket
Width	1850 mm (73 in)
Length	—
Mass	178 kg (392 lb)
Hydraulic System
Rated Flow	60 L/min (16 gal/min)
Maximum Pressure	19 498 kPa (195 bar) (2828 psi)
Cycle Times (in seconds)
Loader Raise Time	4.5
Loader Lower Time	3.1
Bucket Dump Time	3.6
Bucket Rollback Time	3.6
Lift Height (Maximum)
To Pivot Pin (A)	3351 mm (132 in)
Clearance
Bucket Level (B)	3157 mm (124 in)
Bucket Dumped (C)	2523 mm (99 in)
Digging Depth (H)	69 mm (3 in)

Reach
At Maximum Lift Height with Bucket Dumped (D)	1039 mm (41 in)
Bucket on Ground with Bucket Leveled (F)	2248 mm (89 in)
Angles (Maximum)
Dump (E)	55°
Dump at Ground	109°
Rollback (G)	42°
Lift Capacity
To Maximum Height at Pivot Point (U)	1170 kg (2579 lb)
To Maximum Height at 800 mm (31.5 in) Ahead of Pivot Point (V)	1319 kg (2908 lb)
To 1500 mm (59 in) at Pivot Point (W)	1636 kg (3607 lb)
To 1500 mm (59 in) at 800 mm (31.5 in) Ahead of Pivot Point (X)	1579 kg (3481 lb)
Breakout Force
At Pivot Point (Y)	21 271 N (4782 lbf)
800 mm (31.5 in) Ahead of Pivot Point (Z)	18 024 N (4052 lbf)
Bucket Rollback Force
At maximum height (VV)	18 015 N (4050 lbf)
At 1500 mm (59 in) lift height (XX)	30 243 N (6799 lbf)
At Ground Level Line (ZZ)	29 745 N (6687 lbf)
