520M Non Self-Leveling Loader Specifications on 5E Series T3 Three-Cylinder Tractors

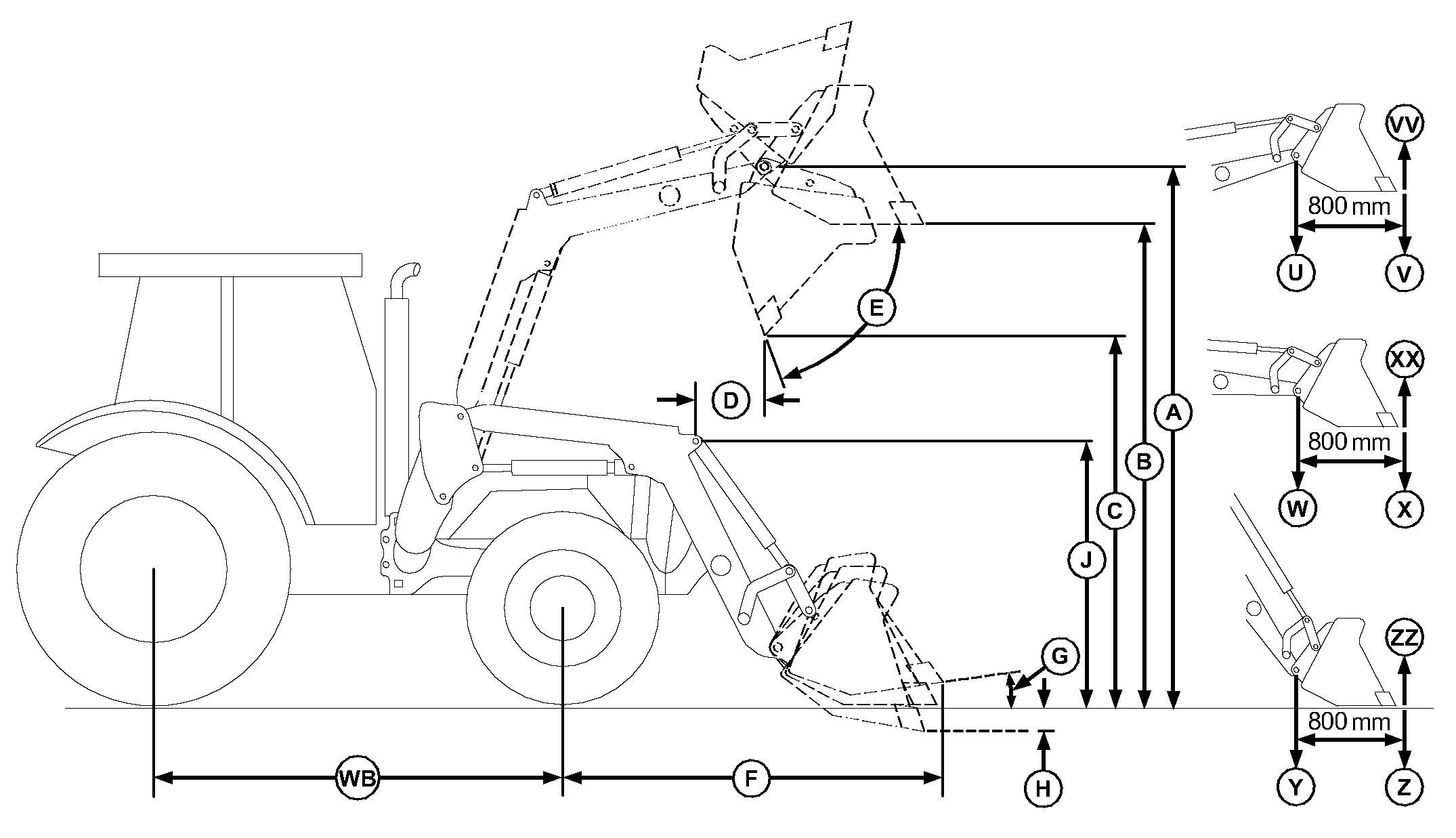

W24300-UN-04NOV13

Model 5E Series T3 Three-Cylinder Tractors1
Minimum Rear Ballast	Option 1	3-Point Hitch 1050 kg (2315 lb)
	Option 2	3-Point Hitch 950 kg (2094 lb) Plus Rear Axle 200 kg (441 lb)
Front Tires	12.4R24
Rear Tires	16.9R30
Materials Bucket
Width	1850 mm (73 in)
Length	—
Mass	178 kg (392 lb)
Hydraulic System
Rated Flow	43 L/min (11 gal/min)
Maximum Pressure	19 498 kPa (195 bar) (2828 psi)
Cycle Times (in seconds)
Loader Raise Time	5.1
Loader Lower Time	3.5
Bucket Dump Time	4.3
Bucket Rollback Time	2.6
Lift Height (Maximum)
To Pivot Pin (A)	3336 mm (131 in)
Clearance
Bucket Level (B)	3141 mm (124 in)
Bucket Dumped (C)	2484 mm (98 in)
Digging Depth (H)	82 mm (3 in)

Reach
At Maximum Lift Height with Bucket Dumped (D)	921 mm (36 in)
Bucket on Ground with Bucket Leveled (F)	2154 mm (85 in)
Angles (Maximum)
Dump (E)	59°
Dump at Ground	148°
Rollback (G)	46°
Lift Capacity
To Maximum Height at Pivot Point (U)	1665 kg (3671 lb)
To Maximum Height at 800 mm (31.5 in) Ahead of Pivot Point (V)	1071 kg (2361 lb)
To 1500 mm (59 in) at Pivot Point (W)	1825 kg (4023 lb)
To 1500 mm (59 in) at 800 mm (31.5 in) Ahead of Pivot Point (X)	1347 kg (2970 lb)
Breakout Force
At Pivot Point (Y)	20 035 N (4504 lbf)
800 mm (31.5 in) Ahead of Pivot Point (Z)	13 798 N (3102 lbf)
Bucket Rollback Force
At maximum height (VV)	11 445 N (2573 lbf)
At 1500 mm (59 in) lift height (XX)	20 809 N (4678 lbf)
At Ground Level Line (ZZ)	21 605 N (4857 lbf)
