540M Mechanical Self-Leveling Loader Specifications on 6105D, 6115D, 6130D, and 6140D (IT4; MY13 and Newer) Tractors

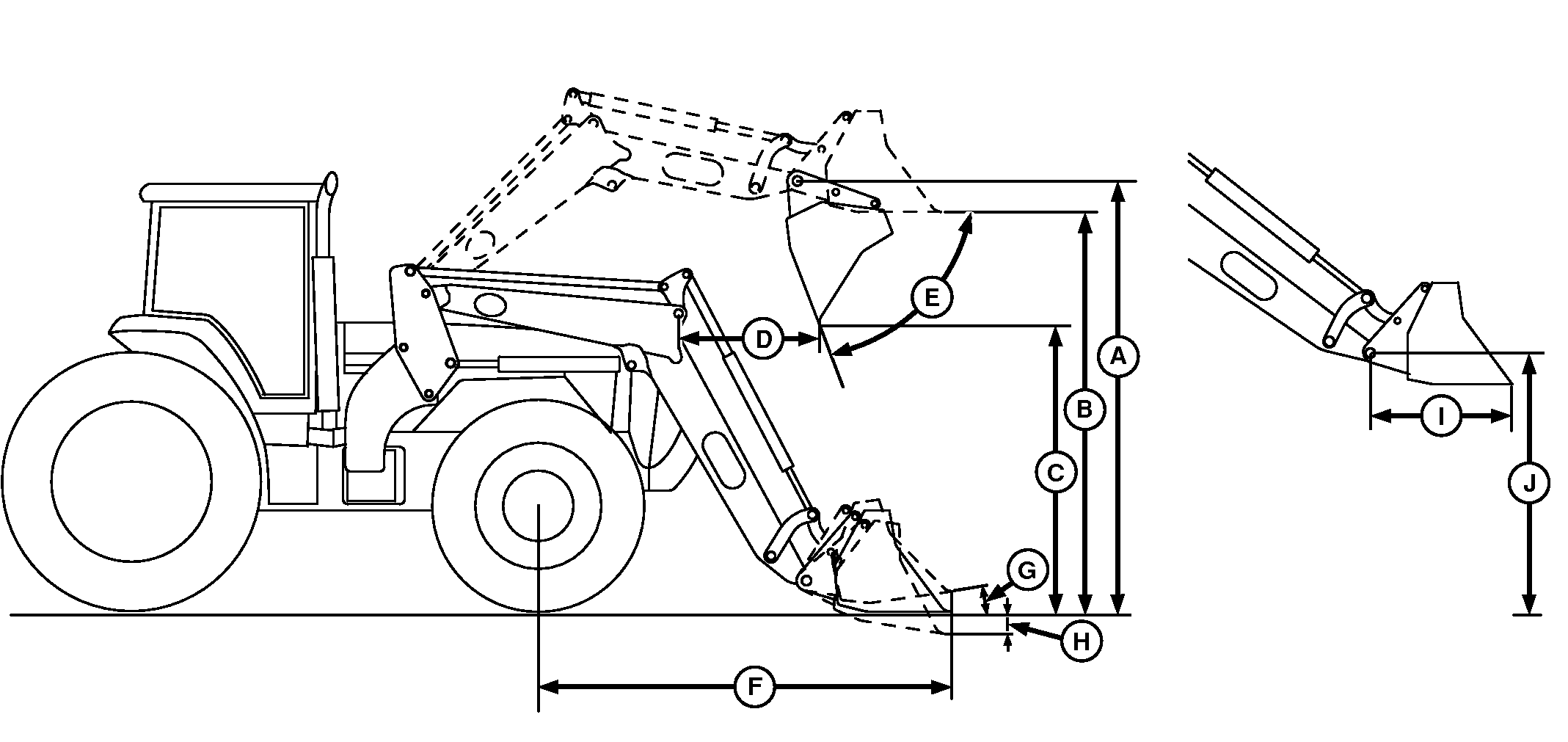

W20964-UN-11OCT10

Tractor Model 6105D, 6115D, 6130D, and 6140D (IT4; MY13 and Newer)1
Minimum Rear Ballast	Option 1	3-Point Hitch 1000 kg (2205 lb) Plus Rear Axle —
	Option 2	Rear Axle Only 1450 kg (3197 lb)
Front Tires	14.9R24
Rear Tires	18.4R38
Heavy-Duty Materials Bucket
Width	1850 mm (73 in)
Length	—
Mass	228 kg (502 lb)
Hydraulic System
Rated Flow	76 L/min (20 gal/min)
Maximum Pressure	19 498 kPa (195 bar) (2828 psi)
Cycle Times (in seconds)
Loader Raise Time	3.36
Loader Lower Time	2.52
Bucket Dump Time	2.05
Bucket Rollback Time	2.05
Lift Height (Maximum)
To Pivot Pin (A)	3578 mm (141 in)
Clearance
Bucket Level (B)	3383 mm (133 in)
Bucket Dumped (C)	2538 mm (100 in)
Digging Depth (H)	47 mm (2 in)

Reach
At Maximum Lift Height with Bucket Dumped (D)	1011 mm (40 in)
Bucket on Ground with Bucket Leveled (F)	2426 mm (96 in)
Angles (Maximum)
Dump (E)	74°
Dump at Ground	96°
Rollback (G)	42°
Lift Capacity
To Maximum Height (U) at Pivot Pin	1373 kg (3021 lb)
To Maximum Height (V) at 800 mm (31.5 in) (I) Ahead of Pivot Pin	1481 kg (3258 lb)
To 1500 mm (59 in) (W) at Pivot Pin	2015 kg (4433 lb)
Breakout Force
At Pivot Pin (Y)	2671 kg-force (5876 lbf)
800 mm (31.5 in) (I) Ahead of Pivot Pin (Z)	2325 kg-force (5115 lbf)
