Operate Loader with Mechanical Multi-Function Lever—540M Loaders (6M and 6R Series Tractors)

LX1054600-UN-10OCT11

LX1053319-UN-10OCT11

LX1053320-UN-10OCT11

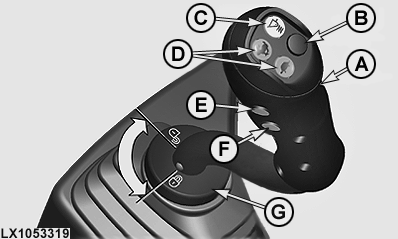

A - Lever

B - (Not Used)

C - Button, Loader Suspension System

D - Switch, Gear Shift (2 used)

E - (Not Used)

F - (Not Used)

G - Locking Ring, Transport Lock

H - Rocker Switch, Third-Function

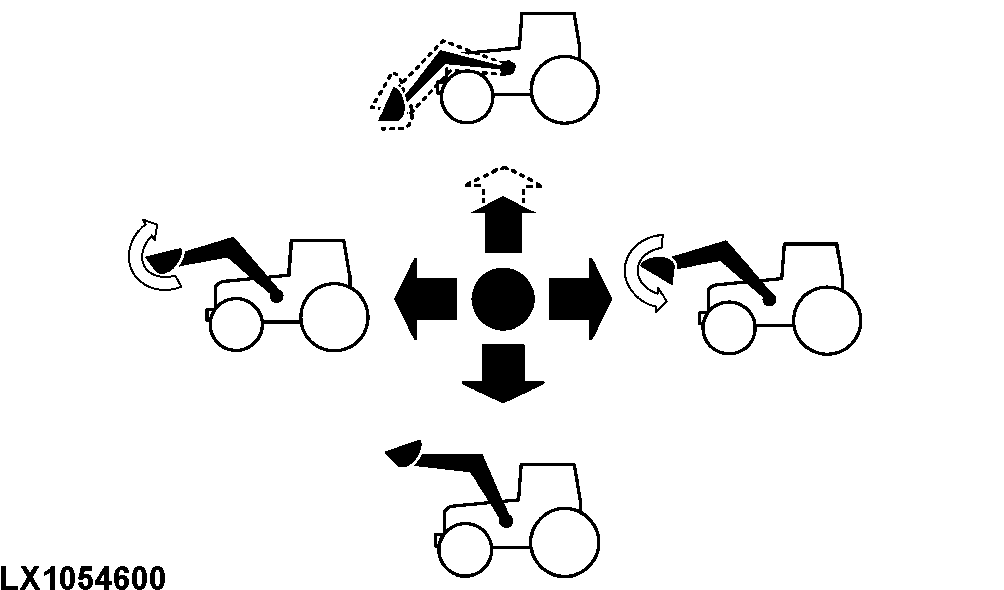

Basic Loader Functions
Lever Movement	Loader Operation
Back	Boom Raise
Forward	Boom Lower
Locked Forward (Detent)	Boom Float
Left	Bucket rollback
Right	Bucket dump

Advanced functions and programming:

Lever (A) permits operation of two control valves at the same time. An optional third control valve is actuated with rocker switch (H).

Button (C) turns on-off the optional loader suspension system.

Switches (D) allow the transmission to be shifted.

CAUTION: Prevent bodily injury and possible machine damage caused by unexpected loader movement while the tractor is moving. The multi-function lever must be locked. Turn locking ring (G) and check that the lever cannot be moved.
