Operate Loader with Electronic Multi-Function Lever—540M Loaders (6R Series Tractors)

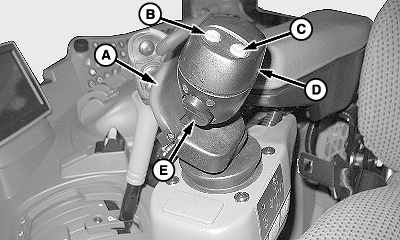

W21773-UN-09SEP11

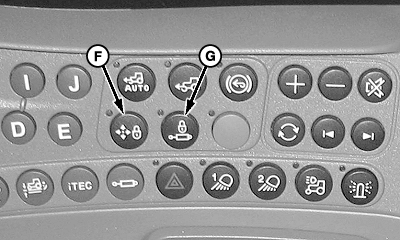

W21774-UN-13SEP11

A - Interlock Switch Actuator

B - Switch, Fifth Function

C - Switch, Fourth Function

D - Lever

E - Switch, Third Function

F - Button, Transport Lock, SCVs XI—XIII (multi-function lever)

G - Button, Transport Lock, SCVs I—IV

IMPORTANT: Prevent possible machine damage. Before operating the loader, verify that the detent positions are set to front-loader operation. (See your tractor Operator’s Manual for more information.)

Lockout the multi-function lever before the tractor is transported with a load.

NOTE: In cold weather, there can be brief periods when the loader does not operate. If the temperature drops below 0°C (32°F), hydraulic valves operate slowly. At temperatures below -25°C (-13°F), hydraulic valves stop functioning. To warm up the hydraulic system, activate several of the loader functions.

Lever (D) permits operation of two SCVs at the same time. Rocker switch (E) controls an optional SCV for a third-function.

Switches (B and C) operate fourth and fifth functions, such as opening and closing a grapple attachment.

Interlock switch actuator (A) prevents accidental actuation of the lever. The lever only operates when the actuator is open (the operator's hand must hold it open). Three things can activate a lockout feature. To deactivate the lockout, place lever in the neutral position and remove hand.

Reasons for lockout activation:

1. Interlock switch is open, but the lever does not move for 10 minutes.

2. Lever is not in neutral when the interlock switch is opened.

3. Interlock switch is open when the tractor is started.

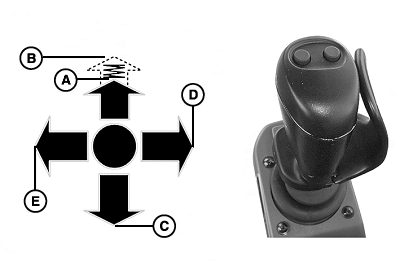

Electronic Multi-Function Lever

W23282-UN-17DEC12

A - Boom Lower

B - Float Position

C - Boom Raise

D - Bucket Dump

E - Bucket Rollback

Electronic Multi-Function Lever Functions:
(A)	Boom lower: Slowly push lever forward until resistance is felt.
(B)	Float position: Push lever all the way forward.
(C)	Boom raise: Pull back lever.
(D)	Bucket dump: Push lever right until resistance is felt. To vibrate the bucket, push lever all the way right twice in quick succession then hold right.
(E)	Bucket roll back: Push lever left.
