Raise and Lower Loader

CAUTION:

TS685
TS685-UN-21SEP89

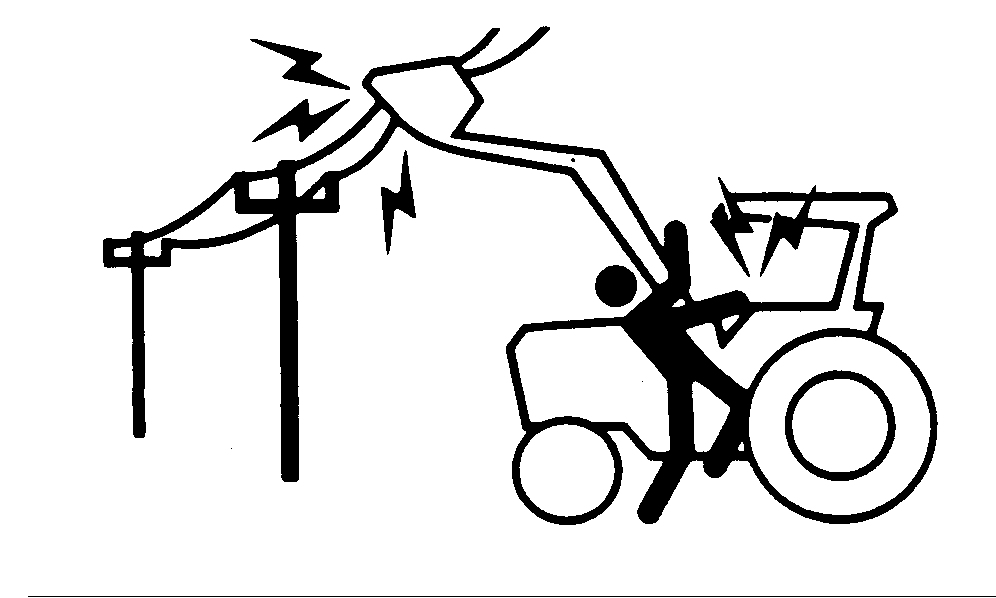

Prevent bodily injury or death from electrical contact. Beware of lift clearance when raising the loader to maximum height. Beware of low electrical wires when the loader is raised. Do not leave the operator seat if any part of the tractor or loader contacts cables.

IMPORTANT: Prevent possible machine damage. Stop the loader gradually when lowering heavy loads. Never drop a loaded bucket or attachment and “catch” hydraulically. Stopping a load after it has gained downward momentum can damage the tractor or loader.

To lower a heavy load, move the multi-function lever forward slightly, enough to start gradual movement.

OUO6064,0001DE3-19-20170530
