Level and Scrape Forward

IMPORTANT:

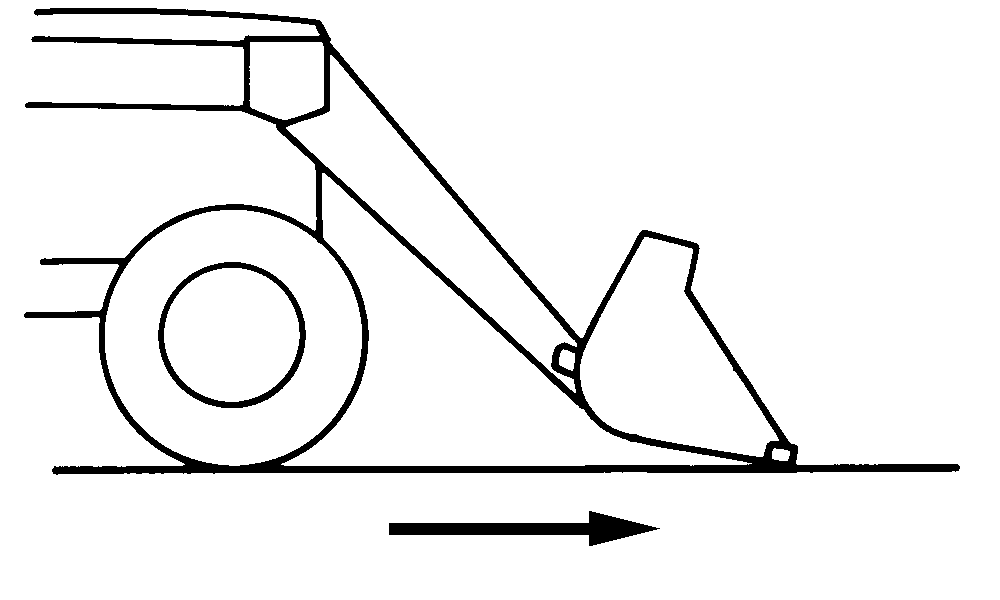

W01785
W01785-UN-07JAN97

Prevent possible damage to the bucket cutting edge while scraping forward. Position the bucket level or just below level. To reduce wear on the cutting edge and damage to concrete, place the multi-function lever in the FLOAT position when scraping concrete.

To level or scrape forward, position the bucket level or slightly below level.

Using FLOAT reduces down pressure and wear on the cutting edge when scraping concrete. Using FLOAT also reduces damage to the concrete surface.

OUO6064,0001DE7-19-20170530
