Store Loader and Attachments

CAUTION:

W14000
W14000-UN-05OCT88

W00267
W00267-UN-27NOV91

W27988
W27988-UN-30MAY17

Prevent bodily injury or death from a loader fall or rollover. Securely store the loader with a bucket or attachment attached to prevent falling. Keep playing children and bystanders away from the storage area.

Prevent bodily injury from exposed fork tines, always store the bale fork with the tines pointed down, or against a bale, building, or other stable object.

NOTE: Loader can be stored attached or detached from the tractor.

For an attached loader:

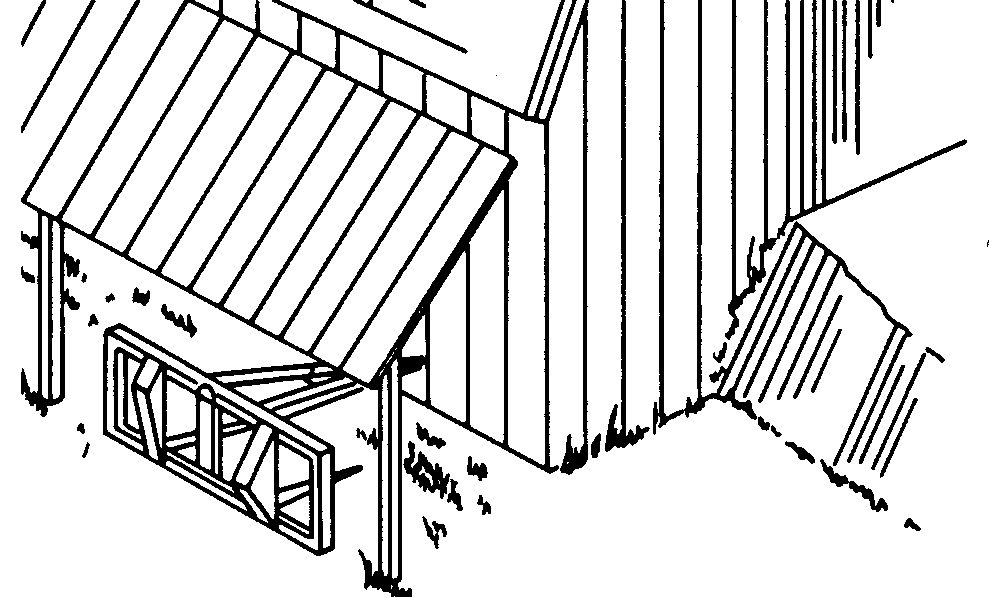

Store the loader in a dry, protected place. If the loader is stored outside, cover with a waterproof material.

Retract all hydraulic cylinders, if possible. If not, apply grease to any exposed cylinder rods to prevent rust from forming.

For a detached loader:

  • Park and detach the loader in dry and protected place. (Refer to Detach Loader in Attach and Detach Loader section.)
  • Hang the hydraulic hoses from the holder on the right-hand mast. Install protective caps on the couplers, or place the multicoupler in a watertight bag.

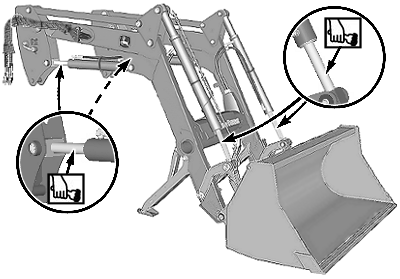

  • To prevent rust from forming, apply grease to all the exposed cylinder rods and pivot pins.
  • Store pivot pins in the masts on both sides.

OUO6064,0001DEA-19-20170530
