Level Bucket—520M Loaders

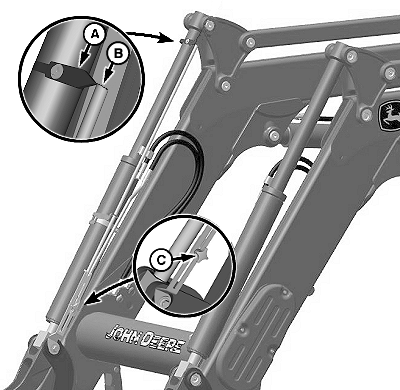

W27534
W27534-UN-06JUL16

Mechanical Self-Leveling Loader

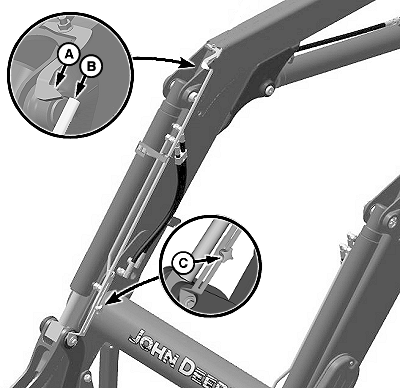

W27535
W27535-UN-06JUL16

Non-Self-Leveling Loader

A - Arrow

B - Indicator Rod

C - Knob

Bucket or attachment is level when the top of indicator rod (B) is even with the point of arrow (A).

NOTE: Use knob (C) if any adjustments are needed for different attachments.

OUO6064,0001E3E-19-20170718
