Level Bucket—540M Loaders

W20919
W20919-UN-29SEP10

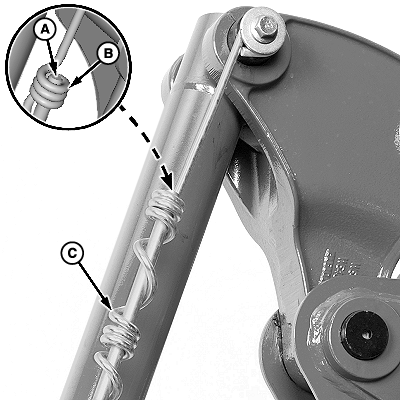

A - Rod

B - Coil Cluster, First

C - Coil Cluster, Second

Level indicator rod (A) is even with the second coil cluster (C) when bucket is level.

Attachment such as a pallet fork, is level when top of rod is aligned with the first coil cluster (B).
