Operate Loader with Multi-Function Lever

W06245-UN-17JUN03

Lever returns to NEUTRAL by itself from all positions except FLOAT. Pull lever back to release from FLOAT.

Key	Lever Movement	Loader Operation
A	Forward	Boom Lower
B	Locked Forward	Boom Float
C	Back	Boom Raise
D	To Right-Hand Side	Bucket/Attachment Dump
E	To Left-Hand Side	Bucket/Attachment Roll Back

NOTE: Two loader operations, such as RAISE and ROLL BACK can happen at the same time. The operation that requires the least hydraulic force moves first due to oil flow limitations.

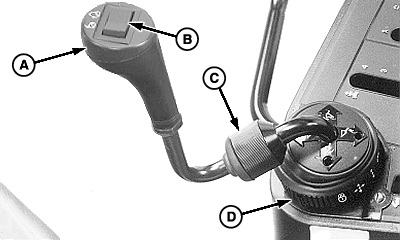

Mechanical Multi-Function Lever—Style A (Early Version)

W08190-UN-19SEP06

Third-Function Shown

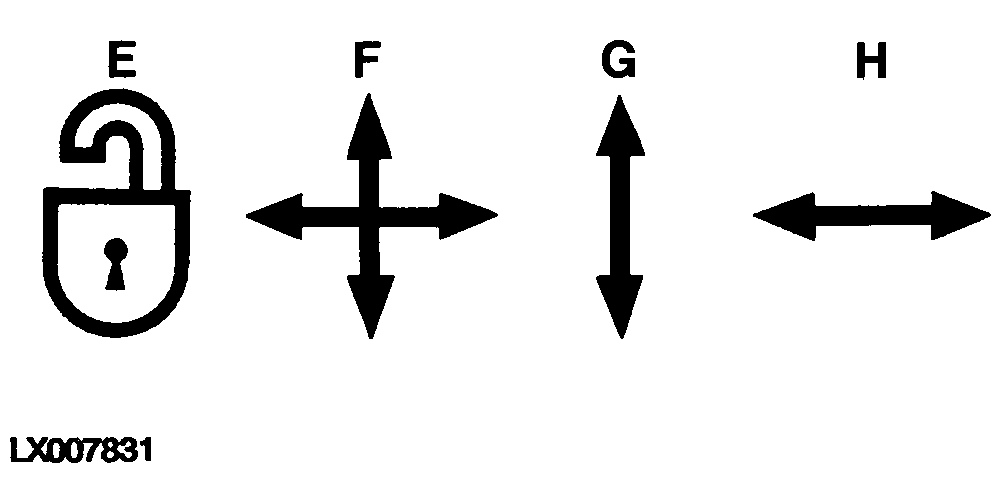

LX007831-UN-15AUG94

Symbols on Locking Ring

A - Lever

B - Switch, Third-Function (optional)

C - Locking Collar

D - Locking Ring

E - Lever Locked

F - Lever Not Locked

G - Lever Locked to Left and Right

H - Lever Locked to Front and Rear

Locking collar (C) can be used to secure the lever in one of two positions.

If the lever is not required for operation, move locking ring (D) to position (E) and slacken off locking collar (C). Swing the lever to the right and tighten locking collar (C). Locking ring (D) can be used to lock out various lever movements.

Operate an attachment, such as a grapple, using third-function switch (B).

Mechanical Multi-Function Lever—Style B (Later Version)

W08191-UN-19SEP06

Third-Function Shown

A - Lever

B - Switch, Third-Function (optional)

C - Transport Lock

Operate an attachment, such as a grapple, using third-function switch (B).

Refer to your tractor Operator's Manual for more information.

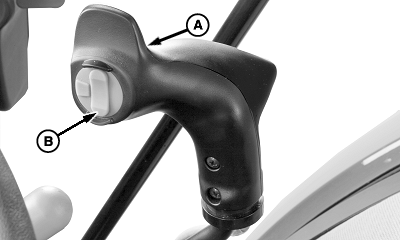

Mechanical Multi-Function Lever—Style C (Current Version, Tractors with a Third-Function Mid-Valve)

W09880-UN-10SEP08

A - Lever

B - Switch, Third-Function (optional)

Refer to your tractor Operator's Manual for more information.

Mechanical Multi-Function Lever—Style C (Current Version, Loaders with a Diverter Valve in Bucket Hydraulic Circuit [Tractors Without a Third-Function Mid-Valve])

CAUTION: Prevent bodily injury or death. As soon as the button for third-function (if equipped) is released the multi-function lever goes back to its primary functions: dump to the right and rollback to the left.

NOTE: If the loader does not respond as expected to the multi-function lever movement:

• Check for correct hose connection and electrical connection. (See Identify Hose Connections in the Service section or Attach Loader in the Attaching and Detaching Loader section.)
• Check tractor hydraulic oil level. (See your tractor Operator’s Manual.)

Third-function needs the loader to be fitted with the required diverter valve. See your John Deere dealer for more information.

The multi-function lever with three-function is protected with a fuse.

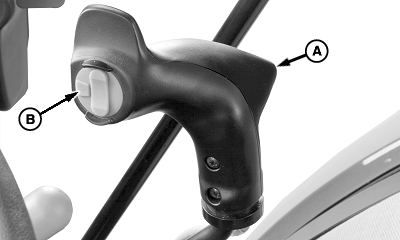

W28190-UN-12JUL17

A - Lever

B - Button, Third-Function (optional)

1. Open Attachment—Continuously press button (B) then move the multi-function lever to the right.
2. Close Attachment—Continuously press button (B) then move the multi-function lever to the left.

Refer to your tractor Operator's Manual for more information.
