120R Loader Specifications on 1E and 1R Series Tractors—1250 mm Bucket

1

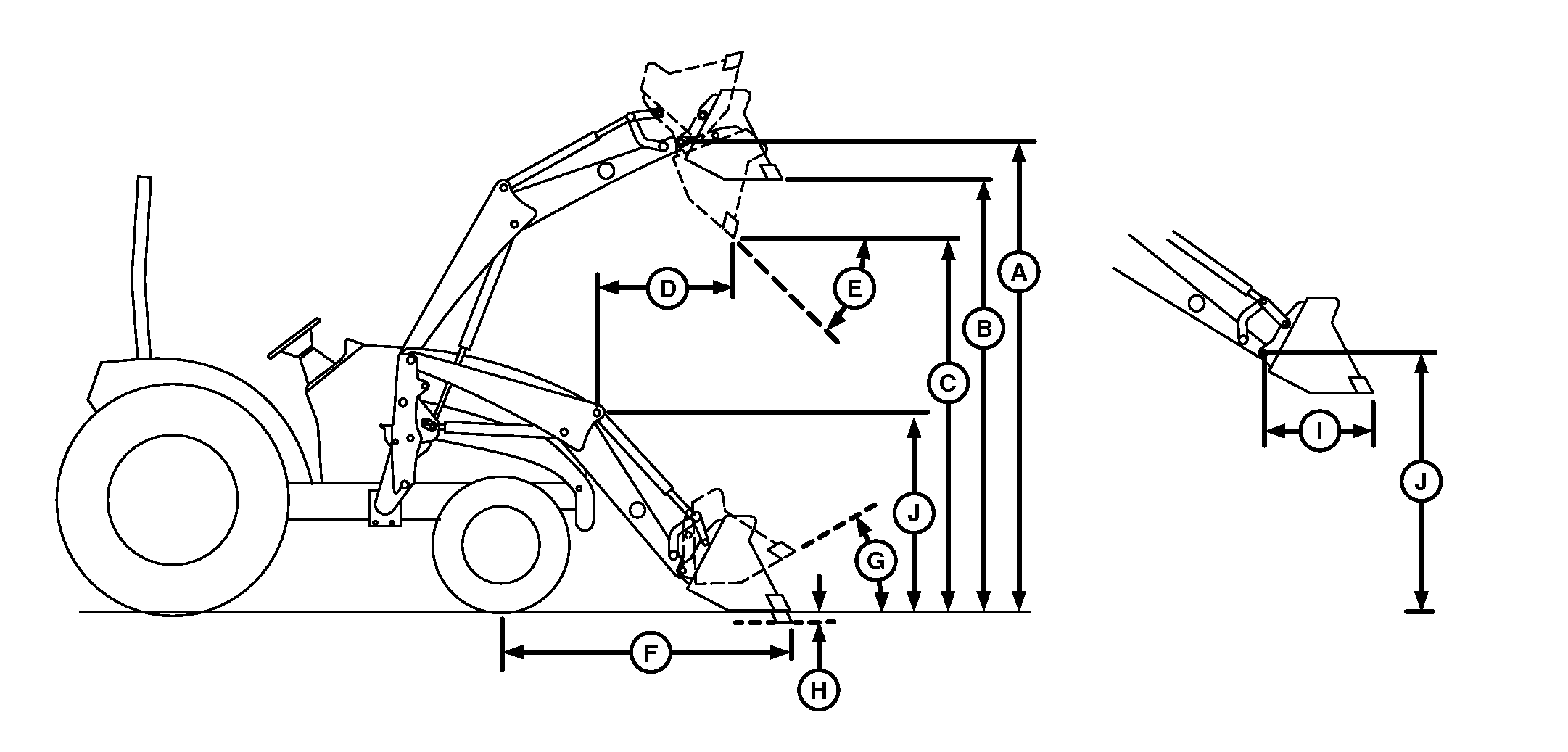

W27082
W27082-UN-14SEP15


1E and 1R Series Tractors

Minimum Rear Ballast

Option 1

Fluid filled rear tires

350 kg (772 lb) minimum (3-point hitch ballast)

Option 2

Three rear wheel weights per wheel

350 kg (772 lb) minimum (3-point hitch ballast)

Minimum Front Tire Load Index

Front Tires

23x8.50-12 6PR R4

Rear Tires

12-16.5 6PR R4

Materials Bucket

Width

1250 mm (49 in)

Length

Mass

70 kg (154 lb)

Hydraulic System

Rated Flow

26.5 L/min (7.0 gal/min)

Maximum Pressure

14 800 kPa (148 bar) (2146 psi)

Cycle Times (in seconds)

Loader Raise Time

3.3

Loader Lower Time

3.2

Bucket Dump Time

3.1

Bucket Rollback Time

2.2

Lift Height (Maximum)

To Pivot Pin (A)

1828 mm (72 in)

Clearance

Bucket Level (B)

1671 mm (66 in)

Bucket Dumped (C)

1371 mm (54 in)

Digging Depth (H)

82 mm (3 in)

Reach

At Maximum Lift Height with Bucket Dumped (D)

626 mm (25 in)

Bucket on Ground with Bucket Leveled (F)

1186 mm (47 in)

Angles (Maximum)

Dump at Full Height (E)

41°

Dump at Ground

115°

Roll back at Ground (G)

30°

Lift Capacity

To Maximum Height (A) at Pivot Point

342 kg (754 lb)

To Maximum Height (A) at 500 mm (19.7 in) (I) Forward of Pivot Point

236 kg (520 lb)

To 1500 mm (59 in) (J) at Pivot Pin

337 kg (743 lb)

Breakout Force

At Pivot Point (Y)

826 kg-force (1823 lbf)

500 mm (19.7 in) Forward of Pivot Point (Z)

599 kg-force (1320 lbf)

1 (Specifications and design subject to change without notice)

OUO6064,0001911-19-20161010
