Operate Forklift

W02873
W02873-UN-03JUL98

W09377
W09377-UN-01APR08

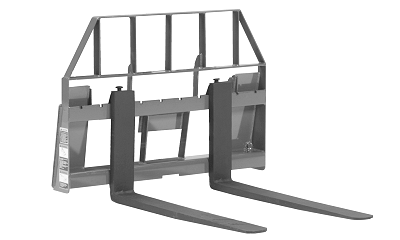

Fixed-Tine Forklift Shown

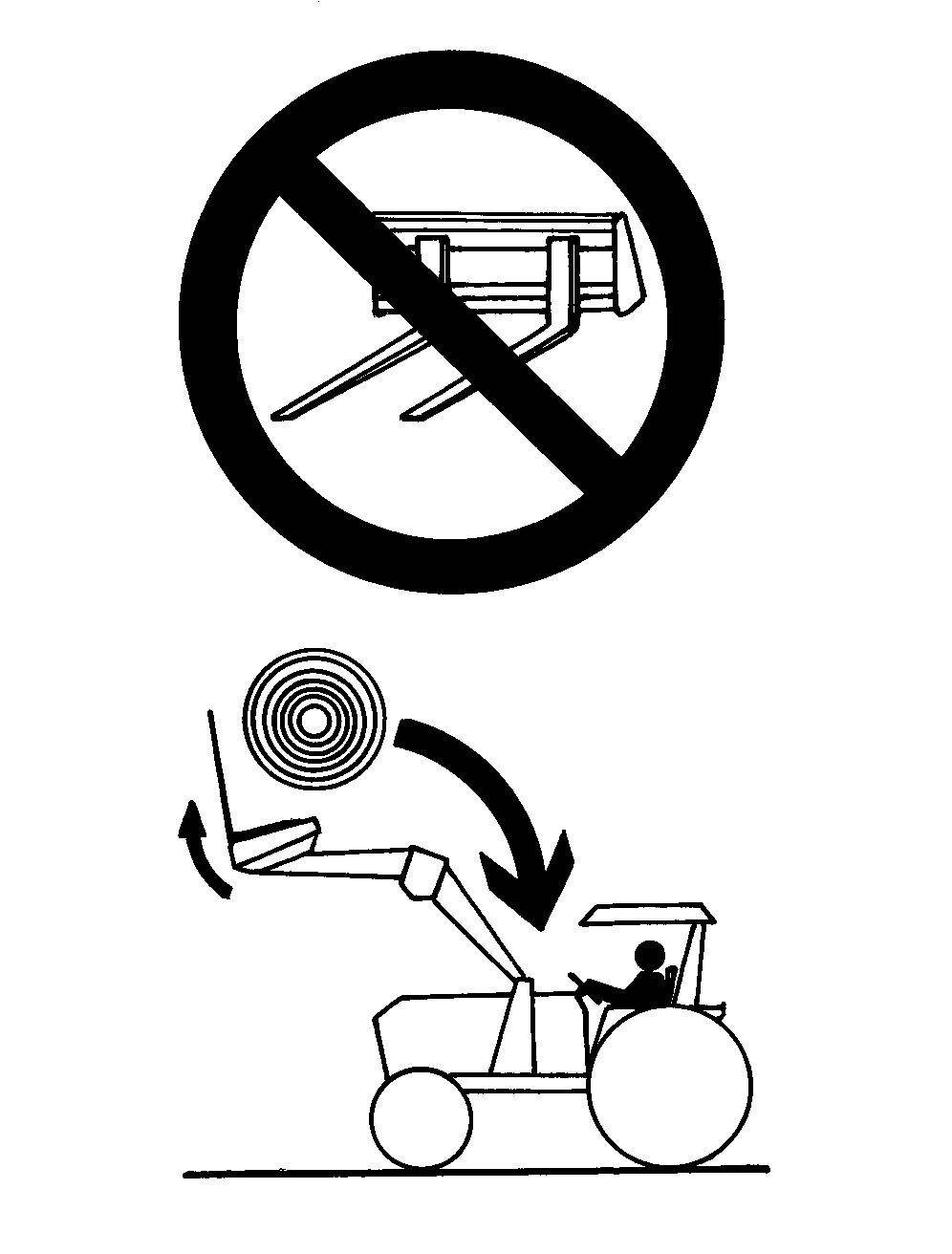

Prevent possible injury or death from a bale falling on the operator. DO NOT handle round bales with a forklift. Prevent possible injury or death from a falling pallet box, bin, or hamper. DO NOT handle stacked pallet boxes if the backstop does not contact the top pallet box.

  1. Approach the load so that the weight is centered between the fork tines. The heaviest side closest to the fork frame and not near the tips of the fork tines.

  2. Before lifting the load, make certain that the fork tines are completely under the load and level.

  3. Prevent possible injury or death. If the load appears unstable, lower and reposition the tines to achieve full stability.

    Lift the load slightly to make sure that the load is stable.

  4. During the load handling:

    • Keep the fork tines level.
    • Stop and start the tractor gradually.
    • Slow down before turning and avoid any obstacles, bumps, or holes.
    • Check the load frequently to ensure stability.

    Raise the load to the MINIMUM height required for the terrain.

For more information and specifications, refer to separate Operator and Parts Manuals supplied with the forklift.

OUO6038,0001DAC-19-20180529
