4-IN-1 Bucket Operation

Read all Safety Precautions before operating attachment.

All 4-IN-1 buckets are designed for various functions, including the following:

Prevent possible injury or death.

  • Operate the attachment only when properly seated at the operator’s station.
  • DO NOT exceed the lift capacity of the loader. (See Specifications section.)
  • DO NOT handle round bales with this attachment.
  • When using the clam function, lift the load slightly and verify that the load is secure. If the load appears unstable, lower the load, open clam, and reposition the load to attain full stability.
  • Avoid rollovers. Reduce tractor speed when operating over rough terrain, on a slope, or turning.
  • Avoid side slope travel. Drive up the slope to pick up the load, then down the slope in reverse.
  • Carry loads as close to the ground as possible.
  • Before exiting the tractor, lower the bucket to the ground, shut off engine, remove key, and apply brake.
  • DO NOT detach the loader from the tractor with this attachment installed. Equip the loader with a materials bucket when detaching.

  1. W20767
    W20767-UN-31MAR10

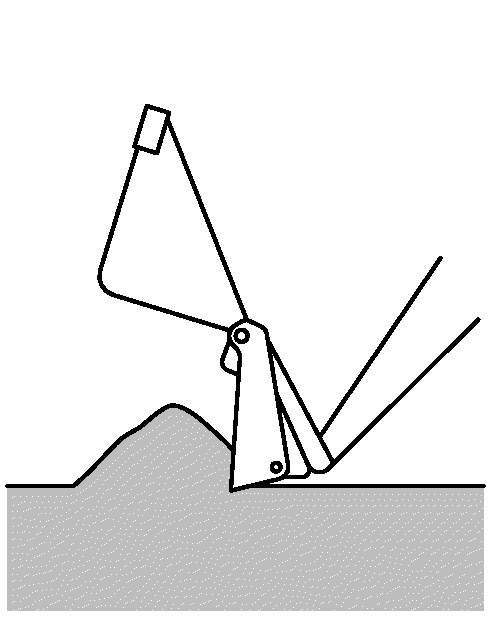

    Bulldoze

    Bulldoze—Tilt the bucket slightly down and open the bucket. Lower the bucket to the operating depth. Push material with back surface of the bucket.


  2. W20768
    W20768-UN-31MAR10

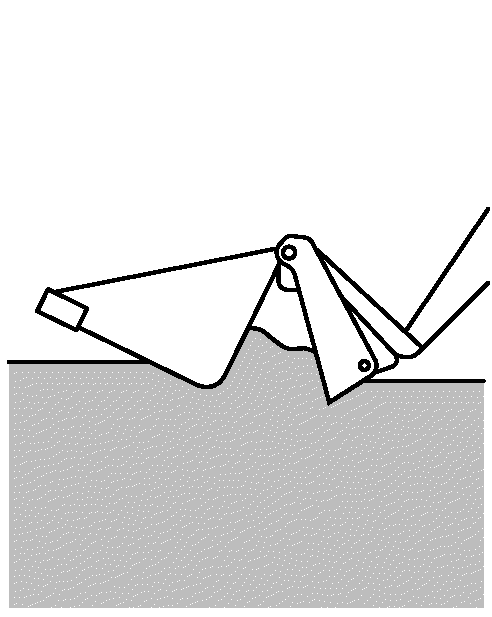

    Clam

    Clam—Tilt the bucket 30 degrees down and open the bucket. Lower the bucket over material while closing the bucket. Maintain even loading of the material.


  3. W20769
    W20769-UN-31MAR10

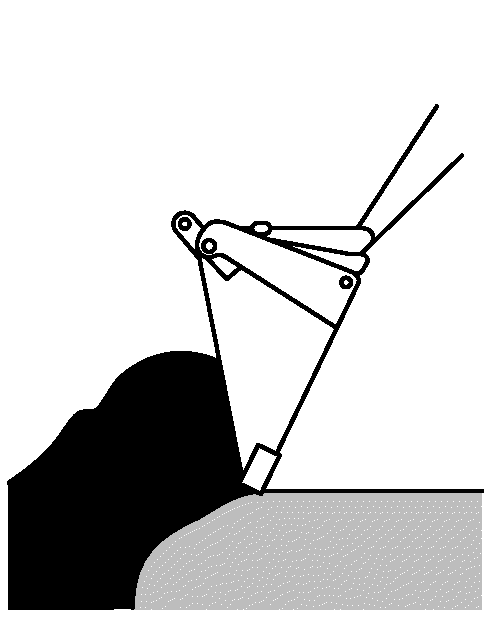

    Backfill

    Backfill—Tilt the bucket 80 degrees down. Push the material into the cavity.


  4. W20770
    W20770-UN-31MAR10

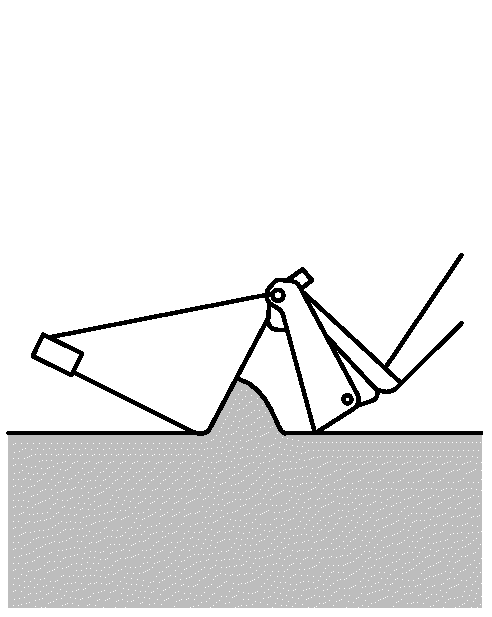

    Back Drag

    Back Drag—Tilt the bucket 30 degrees down and open the bucket slightly. Lower the bucket and drag backward with the back edge of the bucket.


  5. W20771
    W20771-UN-31MAR10

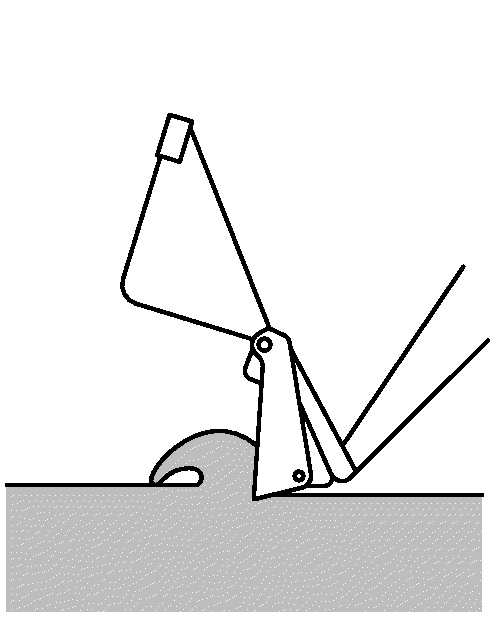

    Scrape

    Scrape—Tilt the bucket slightly down and open the bucket. Lower the bucket onto the hard surface. Push the material with the back surface of the bucket.


  6. W20772
    W20772-UN-31MAR10

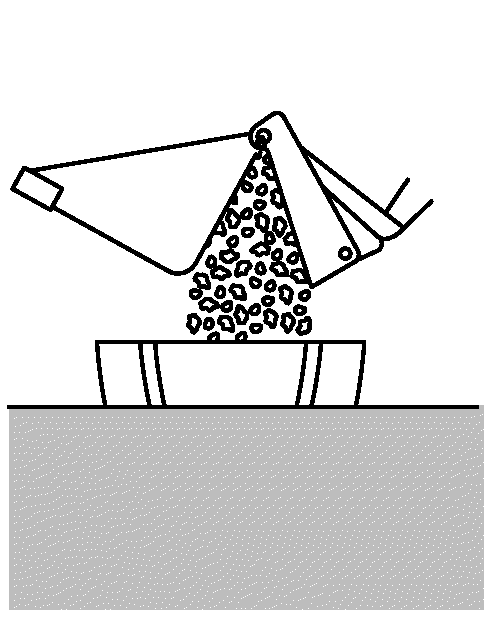

    Bottom Dump

    Bottom Dump—Position the rear of the bucket over the dump target and open the bucket.


  7. W20773
    W20773-UN-31MAR10

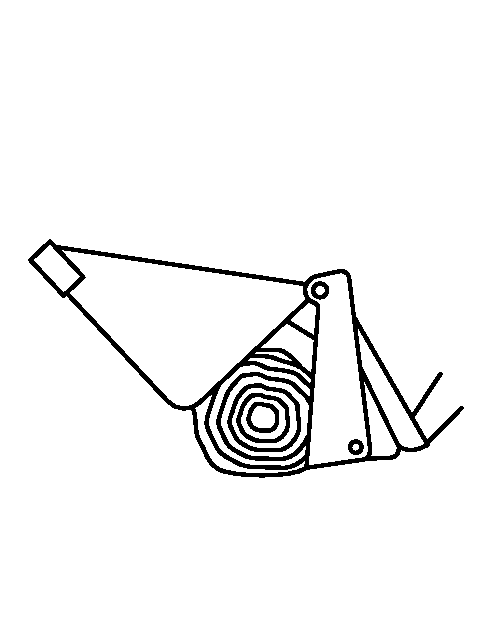

    Grab

    Grab—Tilt the bucket slightly down and open the bucket. Lower the bucket over the material (brush, logs, or bulky material). Close the bucket enough to hold the material securely.


  8. W20774
    W20774-UN-31MAR10

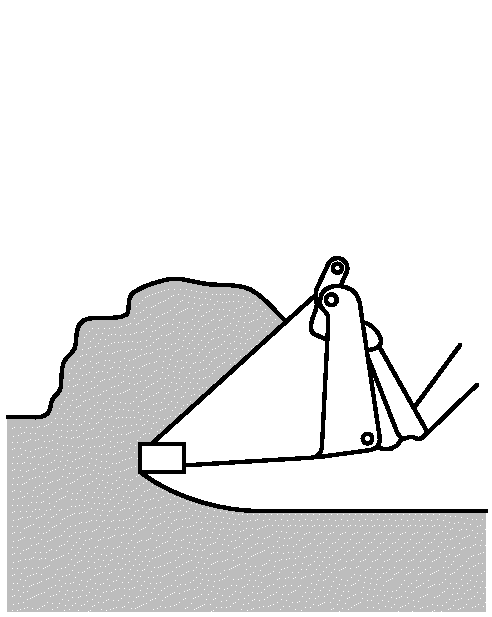

    Dig

    Dig—With the bucket closed, dig material using the same method as a standard bucket.
