Operate Loader with Multi-Function Lever

W06245-UN-17JUN03

Prevent possible injury caused by an unintentional lowering of the loader. DO NOT use the FLOAT position to lower the loader. In the FLOAT position, the loader falls to the ground without restriction.

Refer to symbols on the label near the multi-function lever.

Lever returns to the NEUTRAL position by itself from all positions except FLOAT. Pull back the lever to release from FLOAT.

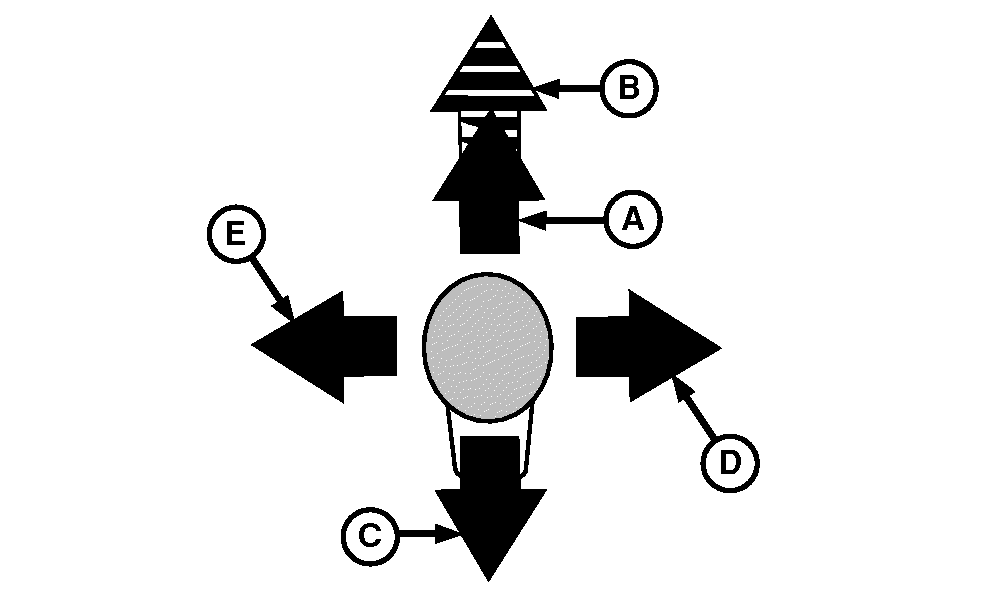

Key	Lever Movement	Loader Operation
A	Forward or Up	Boom Lower
B	Locked Forward or Up	Boom Float
C	Back or Down	Boom Raise
D	To Right-Hand Side	Bucket Dump
E	To Left-Hand Side	Bucket Roll Back

Low oil flow restricts two loader operations from functioning at one time such as RAISE and ROLLBACK. The operation that requires the least hydraulic force occurs first.

Shut off the engine and relieve the hydraulic pressure. (See Relieve Hydraulic Pressure in this section.)

The multi-function lever has a lever lock. (See Lock Out Multi-Function Lever in this section.)
