Lock Out Multi-Function Lever

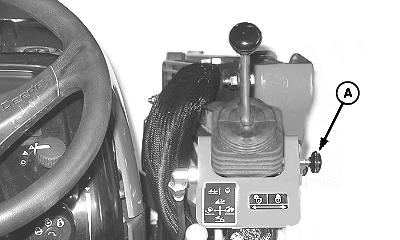

W09574-UN-26JUN08
A - Lockout Knob
To prevent the unintentional movement of the loader, lock the control lever in the middle position.- To engage the lock, pull the lockout knob (A) OUT.
- To unlock, push the lockout knob (A) IN.
|
OUO6064,0000E33-19-20180829 |
