Store Loader and Attachments

Prevent possible injury or death. A detached loader can fall. Store the loader with the bucket or attachment attached to prevent falling. Keep bystanders away from the storage area. Prevent possible injury from exposed fork tines. Always store the bale spear with tines pointed down or against the bale, building, or other stable object.

W14000-UN-05OCT88

W00267-UN-27NOV91

W27174-UN-10DEC15

For a detached loader:

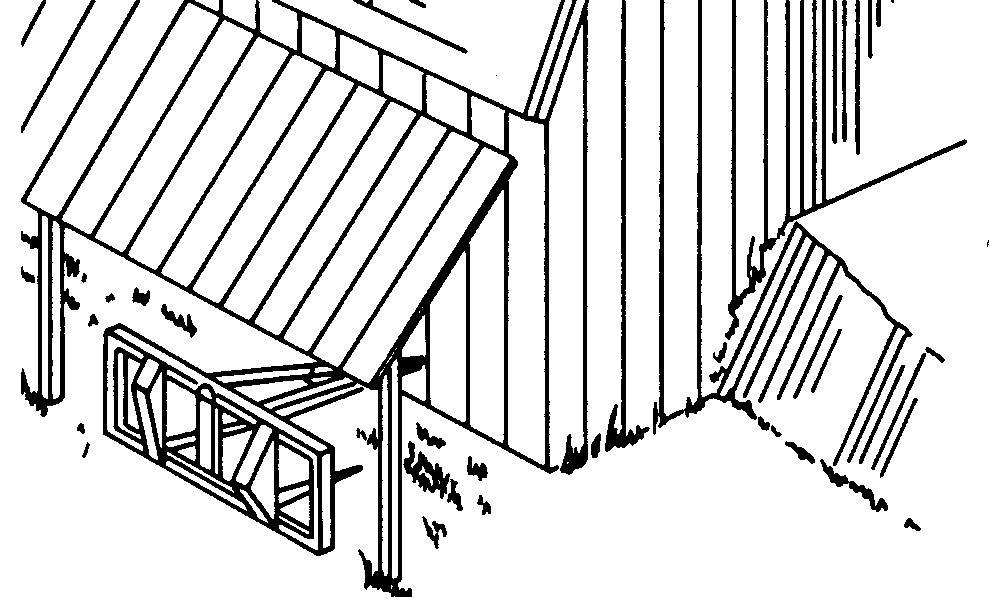

• Park and detach the loader in a dry and protected place. (See Detach Loader in Attach and Detach Loader section.) If stored outside, cover with a waterproof material.

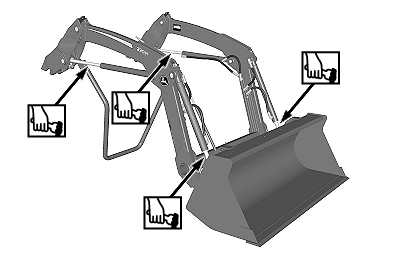

• To prevent rusting, apply grease to any exposed cylinder rods.
• Store the multicoupler (if equipped) on the hose guide.
