Remove Front Weights (300R and 320R Loaders)

W07085-UN-14OCT04

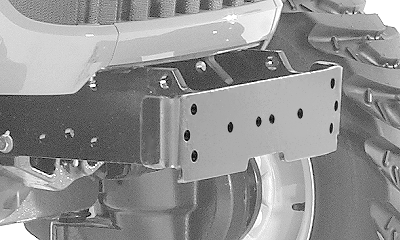

3X20 Series Tractor Shown

Prevent interference with the loader. Remove all the front tractor weights.

Front tractor weight bracket extensions are NOT compatible with the loader.

Remove all the front tractor weights.

Front tractor weight bracket MUST NOT be bent or damaged in any way. Replace if necessary.

All except 4105 tractor: A weight bracket is required for the installation of the loader and must remain on the tractor.
