Add Weight to Ballast Box
W05950-UN-24MAR03

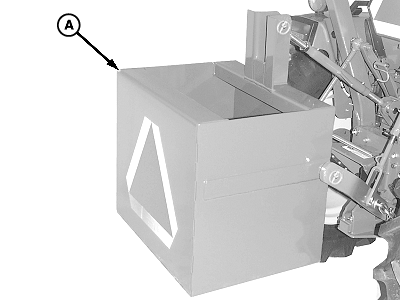

3-Point Hitch with Ballast Box Shown
A - Ballast Box
Weight, such as sand or concrete can be added to the ballast box (A). If more weight is required, tractor QuikTach™ weights can be used.To increase the capacity of the ballast box, a ballast box extension is available. See a John Deere dealer for more information.
A 3-point hitch-mounted implement can be used as ballast, but it must meet the weight requirements of the ballast chart. See a John Deere dealer for more information.
|
CALCULATED BALLAST |
||
|---|---|---|
|
SAND (Dry) |
CONCRETE |
|
|
Ballast Box without Extension |
||
|
Volume: 0.14 cu m (4.94 ft³) (0.18 yd³) |
||
|
Material |
217.5 (480) |
315.5 (695) |
|
Empty Box |
58.5 (129) |
58.5 (129) |
|
Total Weight |
276 (608) |
374 (824) |
|
Ballast Box with Extension |
||
|
Volume: 0.17 cu m (6.00 ft³) (0.23 yd³) |
||
|
Material |
270 (595) |
408 (898) |
|
Empty Box |
72.5 (160) |
72.5 (160) |
|
Total Weight |
342 (752) |
480 (1056) |
|
QuikTach is a trademark of Deere & Company |
OUO6064,0001B3C-19-20180829 |
