Prepare to Attach Loader (300R and 320R Loaders)

1.

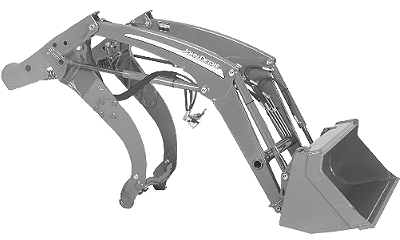

   W28199-UN-21JUL17

   Prevent possible injury from tractor instability. Be sure to prepare the tractor for loader operation as outlined in the Prepare Tractor section.

   Make sure that the tractor is prepared for loader operation. (See Prepare Tractor section.)

---




2. 4105 Tractor: Make sure that the hood guard is installed. The hood guard support aligns with the loader parking stand.

3. Check the loader for any damaged or missing parts.

4. Be sure that hydraulic fittings on the loader and tractor are free of dirt.

5.

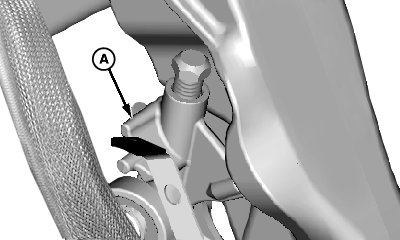

   W28200-UN-25JUL17

   Right-Hand Side Shown

   A - Latch (1 each side)

   Make sure that latches (A) are in the UNLOCKED position as shown.

---
