Check Loader Operation (300R and 320R Loaders)

X9811
X9811-UN-23AUG88

Escaping fluid under pressure can penetrate the skin, causing serious injury. Avoid the hazard by relieving pressure before disconnecting hydraulic or other lines. Protect hands and body from high-pressure fluids. (See additional information, Avoid High-Pressure Fluids, in Safety section.)

  1. W07065
    W07065-UN-11OCT04

    Hydraulic hoses can fail due to physical damage, kinks, age, and exposure. Check the hoses regularly. Replace damaged hoses.

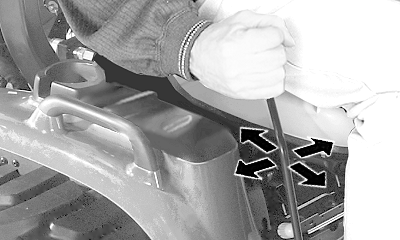

  2. Cycle the loader.

  3. Ensure that the loader reacts correctly to the control lever movement. See the tractor Operator's Manual for more information.

  4. Relieve the hydraulic pressure. (See Relieve Hydraulic Pressure in Controls section.)

  5. Check for hydraulic oil leaks.

  6. Check the tractor transmission/hydraulic oil level. See the tractor Operator’s Manual for more information.

OUO6064,0001B44-19-20180829
