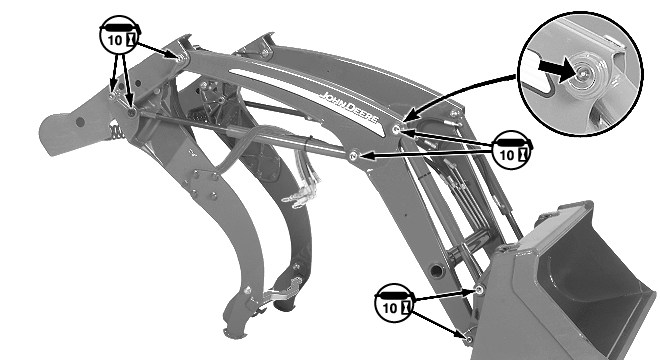

Every 10 Hours (300R and 320R Loaders)

W28220
W28220-UN-21JUL17

Right-Hand Side Shown

300R Loader: Lubricate 14 fittings (seven on each side of the loader).

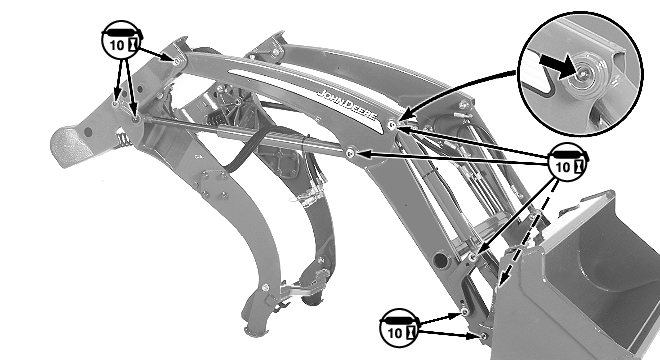

W28221
W28221-UN-21JUL17

Right-Hand Side Shown

320R Loader: Lubricate 18 fittings (nine on each side of loader).

OUO6064,0001B57-19-20180829
