Identify Hose Connections—300R Loader (855, 955, and 870 Tractors)

W07035
W07035-UN-23SEP04

W06934
W06934-UN-19AUG04

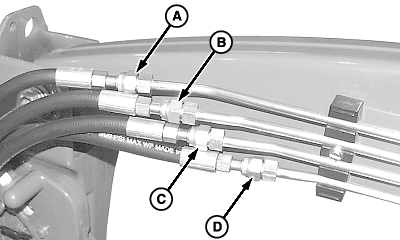

Identify the hoses by installing color-coded caps on the end of the hoses.

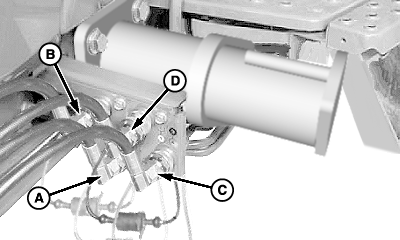

Identify ports on the plate that hold couplers on the tractor by both numbers and colors.

Key

Port

Plug/Cap Color

Hydraulic Function

A

1

Black

Bucket Cylinder—Rod End

B

2

Yellow

Bucket Cylinder—Head End

C

4

Blue

Lift Cylinder—Head End

D

3

Red

Lift Cylinder—Rod End
