Adjust Bucket Level Indicator (300R and 320R Loaders)

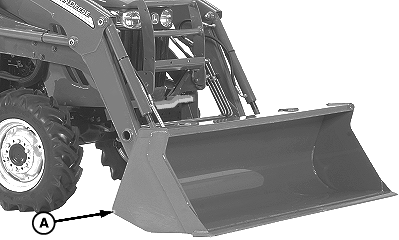

  1. The indicator position for a bucket is not the same as an attachment.

    W28230
    W28230-UN-21JUL17

    A - Bucket/Attachment

    Position the bucket/attachment (A) level on the ground.

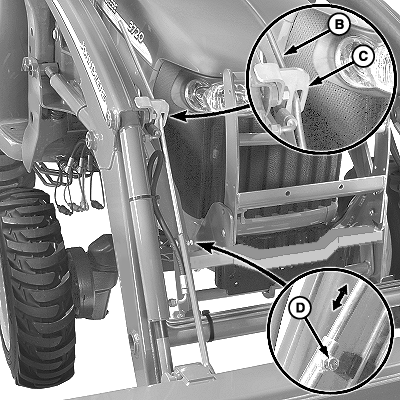

  2. W28231
    W28231-UN-24JUL17

    B - Level Indicator Rod

    C - Guide Bracket

    D - Cap Screw

    Loosen the cap screw (D) and adjust the rod (B) in the tube so that the detent rests in the bottom of the guide bracket (C).


  3. Tighten the cap screw holding the rod securely in place.
