300R Loader Specifications on 3120, 3320, 3520, 3720, 3033R, 3038R, 3039R, 3045R, and 3046R Tractors

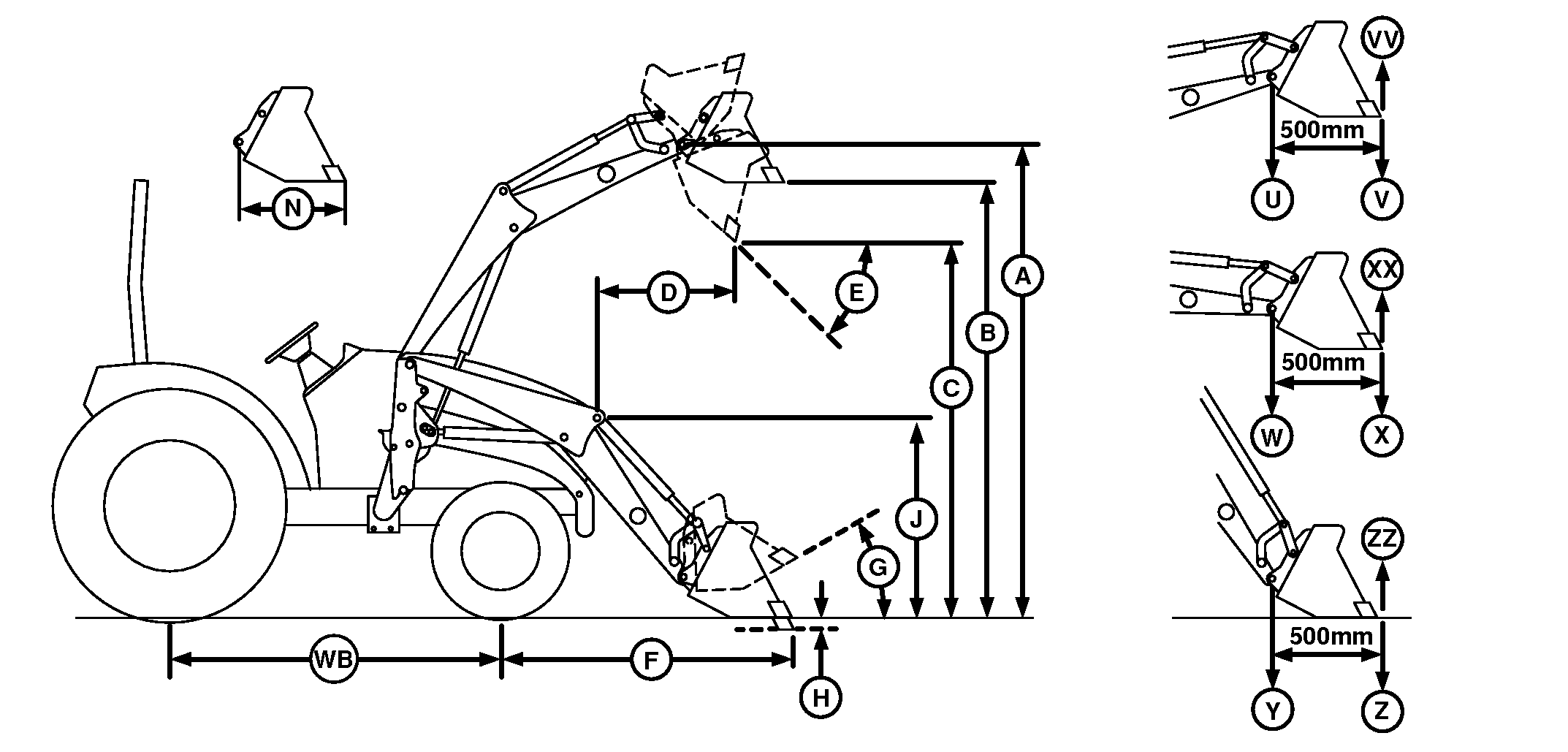

W23764-UN-14JUN13

3120, 3320, 3520, 3720, 3033R, 3038R, 3039R, 3045R, and 3046R Tractors1
Minimum Rear Ballast2	Option 1	Three rear wheel weights per wheel and 350 kg (770 lb) rear hitch ballast
	Option 2	Fluid filled rear tires3 and 300 kg (661 lb) rear hitch ballast
Front Tires	7.00-14 6PR R1
Rear Tires	11.2-24 6PR R1
Wheel Base (WB)	1727 mm (68 in)
Heavy Duty Materials Bucket
Width	1550 mm (61 in)
Length	633 mm (25 in)
Mass	94 kg (207 lb)
Hydraulic System
Rated Flow	32.5 L/min (8.6 gal/min)
Maximum Pressure	17 237 kPa (172 bar) (2500 psi)
Cycle Times (In Seconds)
Loader Raise Time	2.76
Loader Lower Time	1.69
Bucket Dump Time	2.91
Bucket Rollback Time	1.72
Lift Height (Maximum)
To Pivot Pin (A)	2284 mm (90 in)
Clearance
Bucket Level (B)	2123 mm (84 in)
Bucket Dumped (C)	1743 mm (69 in)
Overall Length (WB + F)	3108 mm (122 in)
Digging Depth (H)	76 mm (3 in)

Reach
At Maximum Lift Height with Bucket Dumped (D)	773 mm (30 in)
Bucket on Ground with Bucket Leveled (F)	1381 mm (54 in)
Angles (Maximum)
Dump (E)	43°
Dump at Ground	121°
Rollback (G)	25°
Rollback at Full Height	103°
Overall Height In Carrying Position (J)	—
Lift Capacity
To Maximum Height (U) at Pivot Pin	617 kg (1360 lb)
To Maximum Height (V)	453 kg (999 lb)
To 1500 mm (59 in) at the Pivot Pin (W)	771 kg (1700 lb)
To 1500 mm (59 in) (X)	595 kg (1312 lb)
Breakout Force
At Pivot Point (Y)	12 700 N (2855 lbf)
500 mm Forward of the Pivot Pin (Z)	9040 N (2032 lbf)
Bucket Rollback Force
At Maximum Height (VV)	11 820 N (2657 lbf)
At 1500 mm (59 in) Lift Height (XX)	14 890 N (3347 lbf)
At Ground Level Line (ZZ)	11 650 N (2619 lbf)
