Prepare the Loader (300R and 320R Loaders)

The following procedures apply to all models.

1.

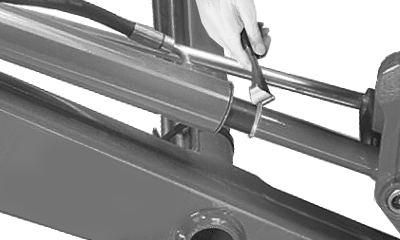

   W28234-UN-24JUL17

   Remove the shipping banding and wire.

---




2. Cut paint mask rings off all cylinders.

3.

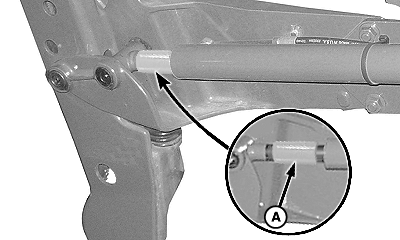

   W28235-UN-24JUL17

   A - Spacer (1 each side)

   Remove and discard spacers (A) from boom cylinders.

---




4.

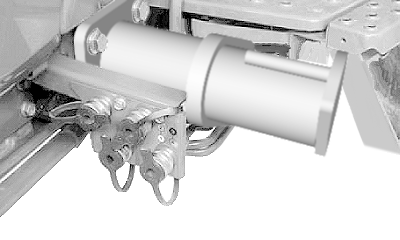

   W06927-UN-17AUG04

   70 Series Tractor—Left-Hand Side Shown

   855, 955, 870, 970, 1070, and 990 Tractors with hydraulic couplers on the left-hand side: To accommodate tractors with couplers on the left-hand side, install an oil line conversion kit on the loader. Refer to Installation Instructions available online to John Deere dealers.

---




5. Install hydraulic hoses. Refer to Installation Instructions available online to John Deere dealers.
