Attach Loader (440R Loader)

1.

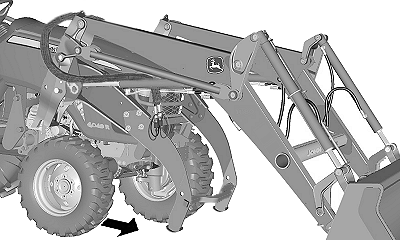

   W28209-UN-21JUL17

   Prevent possible injury from tractor instability. Ensure that the tractor is prepared for loader operation. (See Prepare Tractor section.)

   Prepare the tractor for loader operation. (See Prepare Tractor section.)

---




2. Inspect the loader for damaged or missing parts.

3. Ensure that hydraulic fittings are free of dirt.

4. Start the engine.

5. Drive forward and position the tractor between the loader booms.

6. Apply the park brake and shut off the engine.

7.


   X9811-UN-23AUG88

   Escaping fluid under pressure can penetrate the skin, causing serious injury. Avoid the hazard by relieving pressure before disconnecting hydraulic or other lines. Protect hands and body from high-pressure fluids. (See additional information, Avoid High-Pressure Fluids, in Safety section.)

   Relieve the hydraulic pressure. (See Relieve Hydraulic Pressure in Controls section.)

---




8.

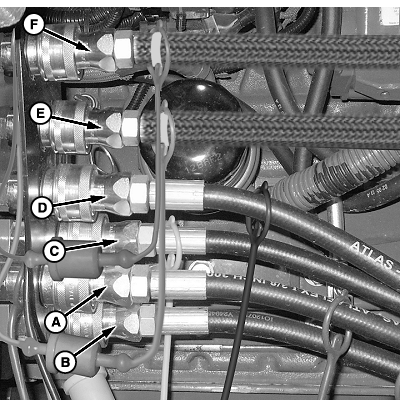

   W23518-UN-01MAY13

   Couplers (Shown with Third-Function)

   If equipped with mid-mount couplers: Connect hydraulic couplers using color-coded caps and plugs.

   Key	Dust Cap/Plug Color	Hydraulic Function
   A	Black	Bucket Cylinder—Rod End
   B	Yellow	Bucket Cylinder—Head End
   C	Blue	Lift Cylinder—Head End
   D	Red	Lift Cylinder—Rod End
   E	Orange	Attachment Cylinder—Head End
   F	Green	Attachment Cylinder—Rod End

---




9. Connect color-coded caps and plugs together.

10.

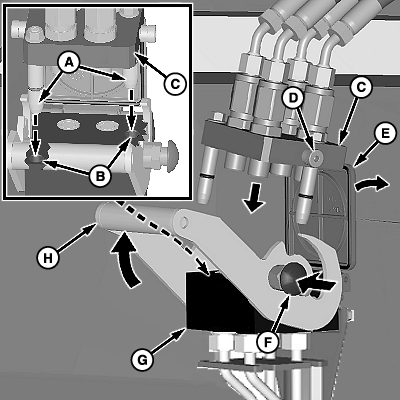

    W24436-UN-16OCT13

    Multicoupler (Two-Function Shown)

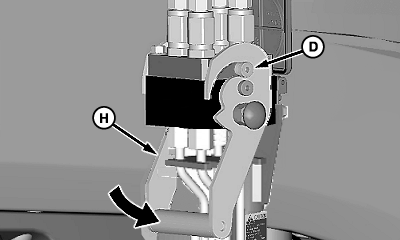

    W24437-UN-16OCT13

    A - Locating Pin (2 used)

    B - Hole (2 used)

    C - Coupler, Loader Half

    D - Pin (1 each side)

    E - Cover

    F - Red Knob

    G - Coupler, Tractor Half

    H - Handle

    If equipped with a multicoupler: Perform the following:

    1. Raise the cover (E).

    2. Push in the red knob (F) and rotate the handle (H) upward, as shown.

    3. Multicoupler mating halves must align properly or damage to couplers can occur.

       Place the loader coupler (C) into the tractor coupler (G) by aligning locating pins (A) with holes (B) in the tractor coupler.

    4. Rotate the handle (H) downward to engage pins (D) on the loader coupler. Continue rotating the handle all the way down until a “click” is heard, locking couplers together.

---




11.


    W20683-UN-17FEB10

    Prevent possible injury. Keep hands clear of moving parts.

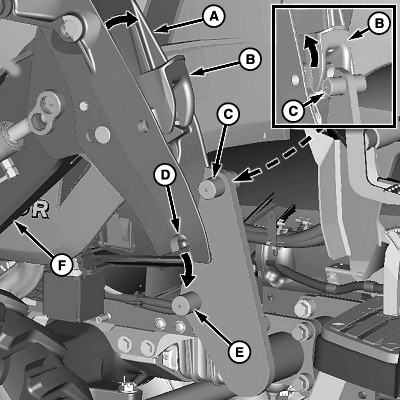

    W28210-UN-21JUL17

    Left-Hand Side Shown

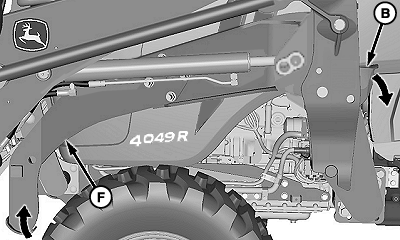

    W28211-UN-21JUL17

    A - Mast (1 each side)

    B - Latch (1 each side)

    C - Pin, Mounting Frame, Top (1 each side)

    D - Saddle, Mast (1 each side)

    E - Pin, Mounting Frame, Bottom (1 each side)

    F - Parking Stand

    Make sure that saddles (D) on both sides are free of dirt and debris.

    Start the engine.

---




12. Retract lift cylinders until mast saddles (D) rest on the bottom pins (E) on both sides.

13. As masts (A) are tilted back, the top mounting frame pin (C) opens latches (B) and then returns them to the LOCKED position. Parking stand (F) automatically raises to the stored position under the tractor during the procedure.

    Retract bucket cylinders, dump the bucket approximately 20°, and lower the boom to the ground.

14. Retract lift cylinders until the loader masts move back and latches (B) contact the top mounting frame pins (C), causing them to open.

15. Continue retracting lift cylinders until the parking stand (F) rises to the stored position and latches on both sides return to the LOCKED position.

16.

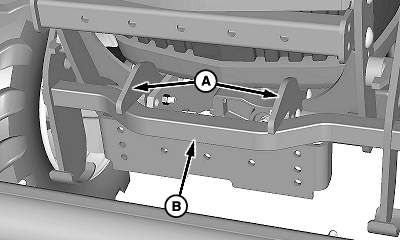

    W23765-UN-15JUL13

    A - Hook (2 used)

    B - Bar

    Verify that the parking stand bar (B) is in the stored position under the tractor frame hooks (A).

---
