Identify Hose Connections (440R Loader)
W23601-UN-30APR13

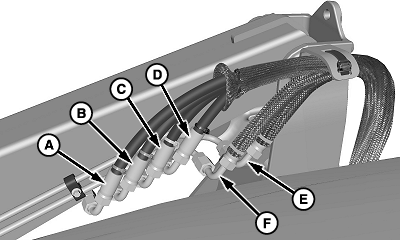

Loader Oil Lines Shown with Third-Function
W23518-UN-01MAY13
Mid-Mount Couplers (Third-Function Shown)
W24438-UN-16OCT13
Two-Function Multicoupler (Loader Half)
W24439-UN-16OCT13
Two-Function Multicoupler (Tractor Half)
Oil lines shown with the protective sleeve pulled back for photographic purposes. To identify the correct hose, match color-coded tie bands near each fitting with color-coded caps on the end of each hose. Color identifies the hydraulic function.
|
Key |
Color |
Hydraulic Function |
|---|---|---|
|
A |
Red |
Lift Cylinder—Rod End |
|
B |
Blue |
Lift Cylinder—Head End |
|
C |
Yellow |
Bucket Cylinder—Head End |
|
D |
Black |
Bucket Cylinder—Rod End |
|
E |
Orange |
Attachment Cylinder—Head End |
|
F |
Green |
Attachment Cylinder—Rod End |
|
OUO6064,0001BB7-19-20180830 |
