Check Parking Stand and Weight Bracket Engagement (440R Loader)

1.
   W28229-UN-21JUL17


   W23604-UN-04JUN13

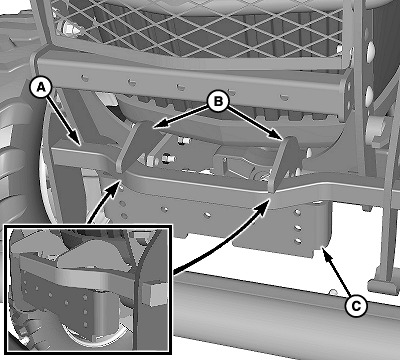

   A - Bar

   B - Hook (2 used)

   C - Weight Bracket

   Prevent damage to the loader or tractor. Make sure that the top bar of the parking stand is positioned between the weight bracket and hooks.

   Make sure that the loader is equipped with a materials bucket.

---




2. Start the engine and lower the ballast box or rear implement to the ground.

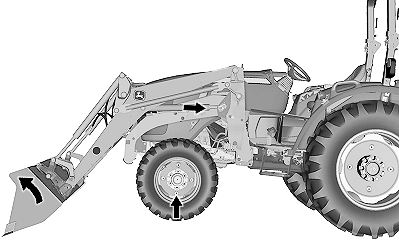

3. Dump the bucket 10°—20° and lower to the ground.

4. Retract lift cylinders, raising the front wheels 25—50 mm (1—2 in) off the ground. (Do not retract lift cylinders completely.)

5. Engage the park brake and place the transmission in PARK.

6. Shut off engine and remove ignition key.

7. Make sure that there is no dirt or debris between the bar (A) of the parking stand, hooks (B), and weight bracket (C). Bar rests on top of the weight bracket and against hooks (B).

   Check that the bar (A) rests on top of the weight bracket (C) and against hooks (B).

8. Start the engine, extend lift cylinders, and lift the bucket from the ground. Ensure that the loader is properly mounted.

9. Lower the loader to the ground, shut off the engine, and remove the ignition key.
