Adjust Bucket Level Indicator (440R Loader)

  1. The indicator position for a bucket is not the same as an attachment.

    W28232
    W28232-UN-24JUL17

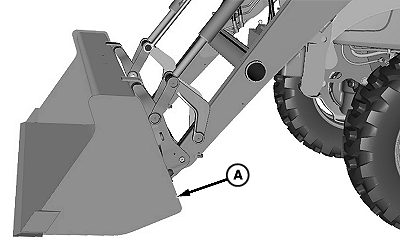

    A - Bucket/Attachment

    Position the bucket/attachment (A) level on the ground.


  2. W28233
    W28233-UN-24JUL17

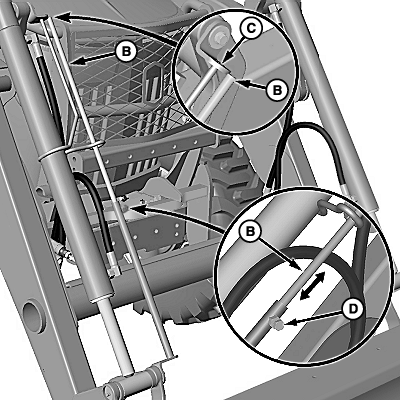

    B - Level Indicator Rod

    C - Bracket

    D - Cap Screw

    Loosen the cap screw (D) and adjust the indicator rod (B) until the top of the rod is even with the bracket (C).


  3. Tighten the cap screw.
