Prepare the Loader (440R Loader)

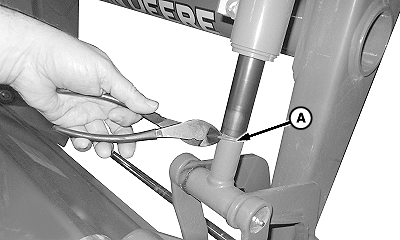

  1. W23613
    W23613-UN-26APR13

    A - Paint Mask Ring

    Remove the shipping banding and wire.



  2. Cut paint mask rings off all cylinders.

  3. Install hydraulic hoses. Refer to Installation Instructions available online.

OUO6064,0001BC0-19-20180830
